12MFS-12MBSPP STRAIGHT

Description & Features

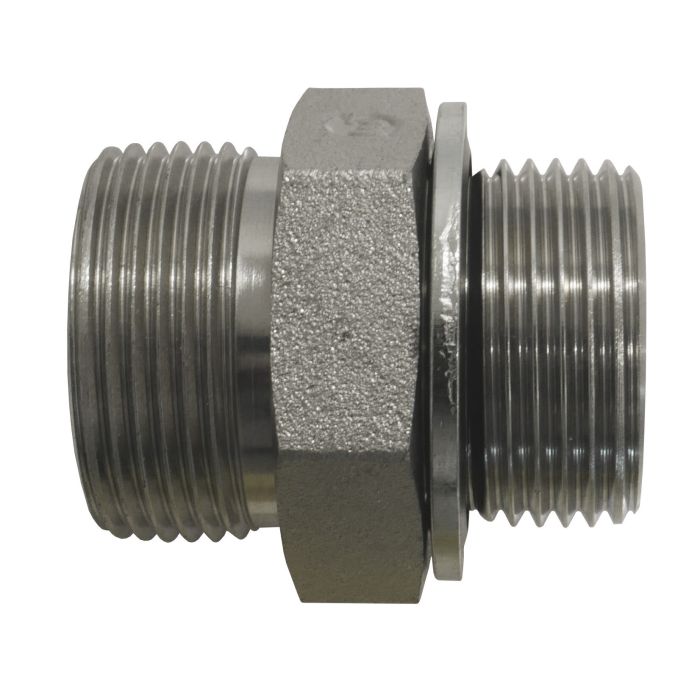

This straight fitting features a 1-3/16-12 Male Face Seal O-Ring thread on one end and a 3/4-14 Male BSPP with 60 Degree Seat thread on the other. The 12MFS-12MBSPP STRAIGHT is constructed from durable steel, ensuring reliable performance in demanding hydraulic applications.

This fitting is part of the FS7002-BS series and includes a 9900-12 Brennan Assembled BSPP Bonded Seal with NBR O-ring seal material to provide a secure, leak-free connection. It is suitable for various fluid transfer applications.

SKU: FS7002-12-12-BS

Supplier Part Number (MPN): FS7002-12-12-BS

Specifications

Additional Information Bonded Seal	Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type Male BSP, Male ORFS	Connection Type 1 Male ORFS	Connection Type 2 Male BSPP	Dimension Standards SAE J1453	Dimensions 50 mm L	Fitting Type Adapter	Hex Size 32 mm	Material Steel	Material Construction Steel	Seal Material NBR	Series FS7002 Series	Thread Size 1-3/16-12 x 3/4-14

Product Questions & Answers (1)

Question by: Rod R on Mar 13, 2026, 8:56 PM

Is this fitting okay for hydraulic fluid?

Answer by: Customer Support on Mar 15, 2026, 2:50 PM

It is designed for fluid transfer applications, and the NBR O-ring seal material is commonly used with hydraulic fluids.
