FS7012-08-08

Description & Features

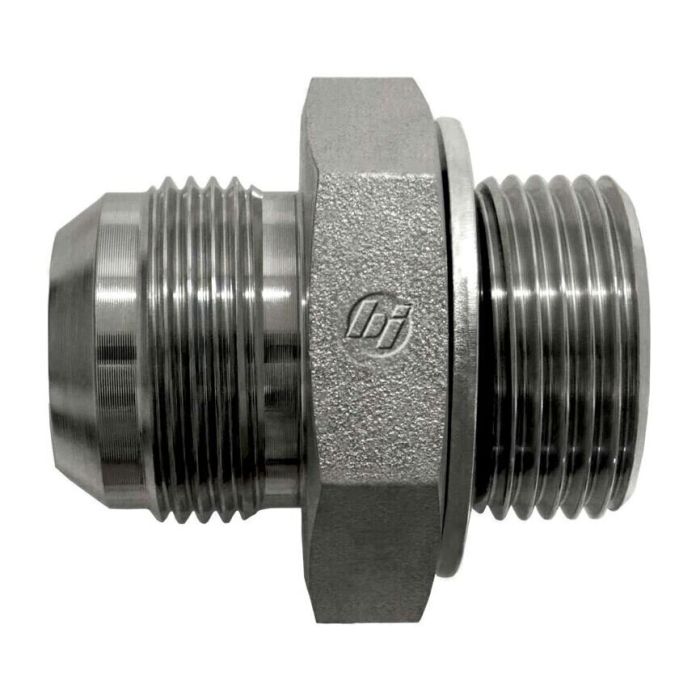

A straight-body adapter connecting a Male Face Seal O-Ring (SAE J1453) port to a Male BSPP thread with O-Ring Retaining Ring (ORR) seal, this fitting bridges two common hydraulic thread standards in a single compact component. The FS7012-08-08 is manufactured from steel and uses an NBR O-ring for reliable sealing across a range of fluid media and operating temperatures typical of hydraulic systems.

The face seal end conforms to SAE J1453 with a 13/16-16 thread, while the BSPP end features a 1/2-14 thread, a pairing suited to equipment combining North American and international hydraulic connections. The ORR configuration adds a retaining ring to secure the O-ring during assembly, reducing the risk of seal displacement. Manufactured by Brennan Industries, this fitting carries a Proposition 65 warning for California residents.

SKU: FS7012-08-08

Supplier Part Number (MPN): FS7012-08-08

Specifications

Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Type Male BSP, Male ORFS	Connection Type 1 Male ORFS	Connection Type 2 Male BSPP	Dimension Standards SAE J1453	Finish Zinc Trivalent	Fitting Type Adapter	Material Steel	Material Construction Steel	Seal Material NBR	Series FS7012 Series	Thread Size 13/16-16 x 13/16-16 x 1/2-14

Product Questions & Answers (1)

Question by: Billy M on Jul 16, 2025, 10:31 AM

Will this fitting hold up okay in a hydraulic system using standard mineral oil?

Answer by: Customer Support on Jul 18, 2025, 6:01 AM

This fitting uses an NBR O-ring, which provides reliable sealing with typical hydraulic fluids, including mineral oil, across a normal range of operating temperatures.
