90 DEG MALE ORS 1/4IN X MALE BSP 1/4IN

Description & Features

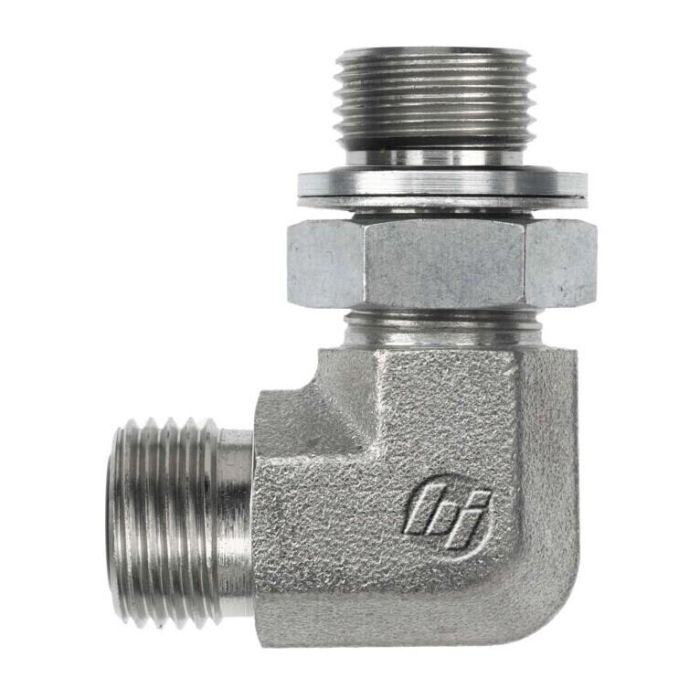

Constructed from a steel forging, this 90-degree elbow provides a right-angle transition between a 1/4 in. Male Face Seal O-Ring (ORS) port and a 1/4 in. Male BSPP adjustable connection. Thread size on the ORS side measures 9/16-18 per SAE J1453, while the BSPP side carries a 1/8-28 thread. The NBR O-ring seal on the face seal end supports reliable, leak-resistant performance in hydraulic circuits where mixed thread standards are required.

The 90 DEG Male ORS 1/4IN x Male BSP 1/4IN is part of the Brennan Industries FS7202-NWO-FG-ORR series. The adjustable BSPP end allows for positional alignment during assembly, making it well suited for confined routing situations in mobile and industrial hydraulic systems. California residents should note that this product is subject to a Proposition 65 warning per Brennan Industries.

SKU: FS7202-04-02-NWO-FG

Supplier Part Number (MPN): FS7202-04-02-NWO-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number FS7202-04-02-NWO-FG	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Howard B on Jun 14, 2025, 9:09 PM

Reckon this fitting will hold up okay in a hydraulic system that sees pretty consistent use?

Answer by: Customer Support on Jun 16, 2025, 6:23 AM

Forged steel construction ensures good durability for demanding hydraulic applications. Just keep in mind the O-ring is NBR, so verify chemical compatibility with your fluid.
