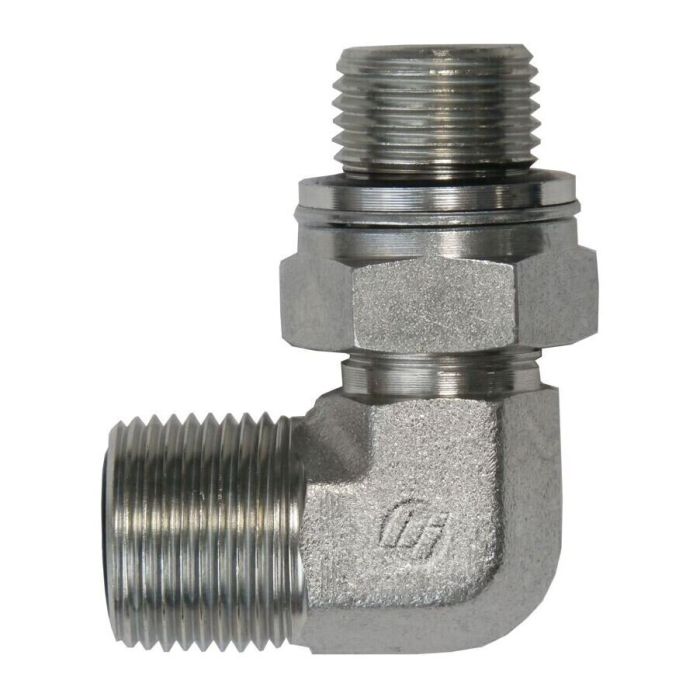

04MFS-12MMAORB 90 ELBOW

Forged from steel, the 04MFS-12MMAORB 90 Elbow is a 90-degree adjustable elbow fitting designed for hydraulic systems requiring a transition between SAE face seal and metric threaded connections. One end features a 9/16-18 Male Face Seal O-Ring thread conforming to SAE J1453, while the other presents an M12x1.5 Male Metric Adjustable connection with an O-ring and retaining ring (ORR) per ISO 9974. This combination makes it well suited for applications bridging SAE and metric hydraulic circuits.

The forged steel construction provides a solid, reliable body appropriate for demanding hydraulic service. NBR O-ring seal material offers compatibility with a broad range of petroleum-based hydraulic fluids. The adjustable metric end allows for directional positioning during installation, adding flexibility in tight or angular routing situations. This fitting is part of the Brennan Industries FS7205-NWO-FG-ORR series. California residents should note that this product is subject to Proposition 65 warnings.

SKU: FS7205-04-12-NWO-FG

Supplier Part Number (MPN): FS7205-04-12-NWO-FG

Alternate Part Numbers: FF7801-04-12
