10MFS-22MMAORB RR 90

Description & Features

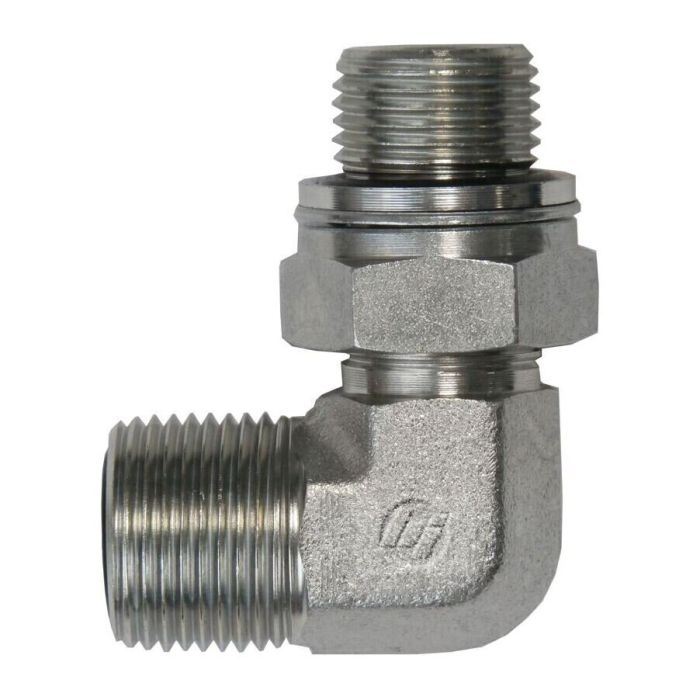

A forged steel 90-degree elbow designed for hydraulic systems requiring a transition between face seal and metric adjustable O-ring connections. The 10MFS-22MMAORB RR 90 connects a 1-14 Male Face Seal O-Ring port conforming to SAE J1453 to a M22x1.5 Male Metric Adjustable O-Ring with Retaining Ring (ORR) per ISO 9974. The adjustable end allows for precise directional positioning during installation, which is particularly useful in tight or congested routing environments.

Constructed from a steel forging, this fitting offers the structural integrity suited to demanding hydraulic service. The NBR O-ring seal material provides reliable sealing performance across a broad range of hydraulic fluids. Manufactured by Brennan Industries under their FS7205-NWO-FG-ORR series. California residents should note applicable Prop 65 warnings associated with this product.

SKU: FS7205-10-22-NWO-FG

Supplier Part Number (MPN): FS7205-10-22-NWO-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number FS7205-10-22-NWO-FG	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Floyd J on Oct 27, 2025, 9:54 PM

If I'm swapping out a fitting, how do I know the O-ring is gonna seal right with different hydraulic fluids?

Answer by: Customer Support on Oct 29, 2025, 6:05 PM

The NBR O-ring material is designed to provide a reliable seal across a broad range of hydraulic fluids, so you shouldn't have any problems there.
