12MFS-27MMAORB RR 90

Description & Features

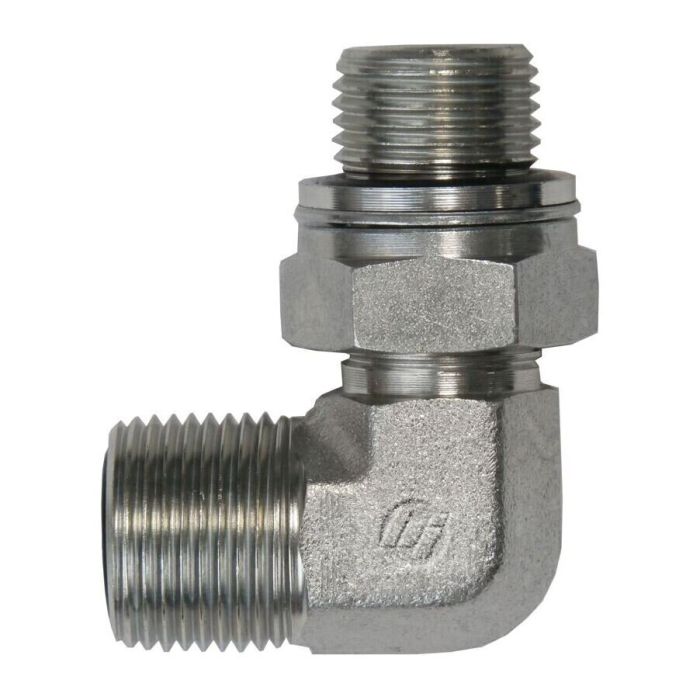

The 90-degree elbow fitting, crafted from durable steel forging, is designed for robust industrial applications. It features a male face seal O-ring with a thread size of 1-3/16-12, compliant with SAE J1453 standards, ensuring reliable and leak-proof connections. Complementing this, the opposite end incorporates a male metric adjustable ORR connection with a thread size of M27x2.0, adhering to ISO 9974 specifications. This combination of thread types provides versatility and compatibility with a range of hydraulic systems.

The 12MFS-27MMAORB RR 90 is equipped with an NBR O-ring seal, offering excellent resistance to oils and hydraulic fluids, making it suitable for demanding environments. Its forged construction enhances strength and durability, reducing the risk of component failure in critical use. The product aligns with the Brennan FS7205-NWO-FG-ORR series, known for precision and reliability in industrial settings.

SKU: FS7205-12-27-NWO-FG

Supplier Part Number (MPN): FS7205-12-27-NWO-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number FS7205-12-27-NWO-FG	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Steve J on Mar 3, 2026, 9:41 PM

Just wanna make sure this 90 degree elbow will fit my setup. It's got a face seal O-ring, right?

Answer by: Customer Support on Mar 5, 2026, 6:41 AM

Yes, it's got the male face seal O-ring with a 1-3/16-12 thread, per SAE J1453. On the other end, there's the male metric adjustable ORR connection, M27x2.0, following ISO 9974.
