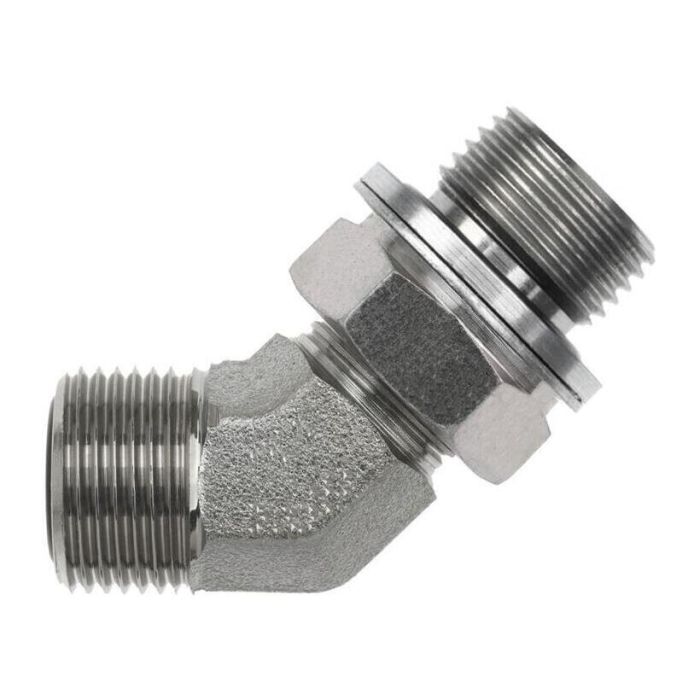

12MFS-27MMAORB 45 ELBOW

Description & Features

Crafted with precision, the 12MFS-27MMAORB 45 Elbow is a robust hydraulic fitting designed to ensure reliable connections in industrial applications. Featuring a male face seal O-ring and a male metric adjustable ORR, this elbow provides a secure and leak-resistant joint. Constructed from high-quality steel forging, it guarantees durability and long-lasting performance even under demanding conditions.

This elbow fitting complies with SAE J1453 standards, ensuring compatibility and industry-standard performance. The thread sizes of 1-3/16-12 and M27X2.0 make it versatile for integration into various hydraulic systems. The NBR O-ring seal material enhances its ability to withstand pressure and temperature variations, making it suitable for a wide range of industrial environments.

SKU: FS7300-12-27-NWO-FG

Supplier Part Number (MPN): FS7300-12-27-NWO-FG

Specifications

Connection Size 1 3/4 in	Connection Type Male ORB, Male ORFS	Connection Type 1 Male ORFS	Connection Type 2 Male Adjustable ORB	Dimension Standards SAE J1453	Finish Zinc Trivalent	Fitting Type 45 deg Elbow	Hex Size 1.18 in	Material Steel	Material Construction C1045 Steel	Maximum Operating Pressure 3600 psi	Operating Temperature -40 to 250 deg F	Seam Material NBR	Series FS7300-NWO-FG-ORR Series	Thread Size 1-3/16-12 x M27x2

Product Questions & Answers (1)

Question by: Ronnie B on Apr 6, 2026, 5:26 PM

Reckon this'll hold up okay in a hydraulic system running near its max pressure rating most of the time?

Answer by: Customer Support on Apr 8, 2026, 1:27 PM

Constructed from high-quality steel forging, this 45-degree elbow is designed for durability even under demanding conditions, so it should be suitable for systems that operate consistently near their maximum pressure rating.
