08MFS-18MM ISO 6149 STRAIGHT

Description & Features

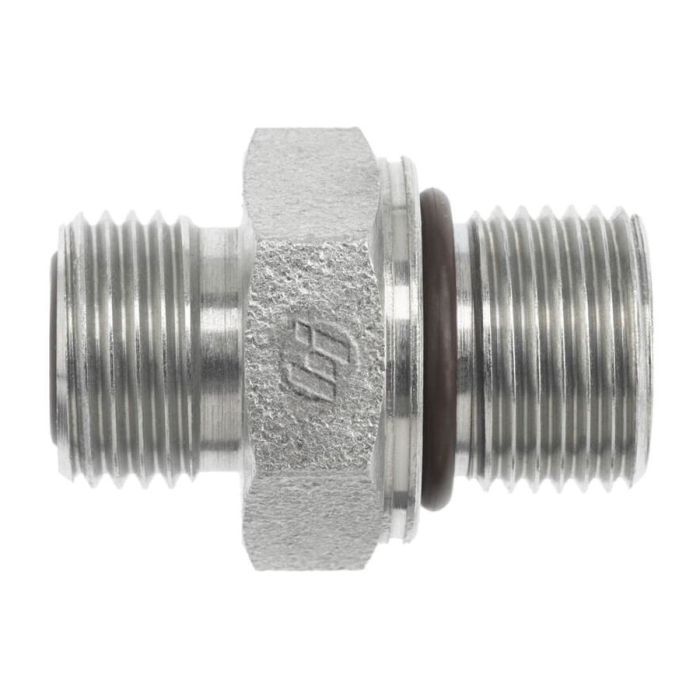

Designed for metric-to-face-seal conversions, the 08Mfs-18Mm Iso 6149 Straight is a straight steel hydraulic adapter connecting an M18x1.5 male metric ISO 6149 O-ring port thread to a 13/16-16 male face seal O-ring (SAE J1453) thread. The straight configuration keeps the connection inline, making it well-suited for compact hydraulic assemblies where routing space is limited.

Constructed from steel and sealed with an NBR O-ring, this fitting is built for reliable fluid containment in standard hydraulic service environments. The ISO 6149 end provides a leak-resistant metal-to-O-ring interface at the port, while the face seal end delivers a positive, vibration-resistant seal at the tube connection. California residents should note this product is subject to Proposition 65 requirements.

SKU: FS7640-08-18-O

Supplier Part Number (MPN): FS7640-08-18-O

Alternate Part Numbers: FS7640-08-18-0

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
M18x1.5
Connection Type
Male Metric, Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
Male Metric ORB
Dimension Standards
SAE J1453
Dimensions
38 mm L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
24 mm
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
FS7640-O-ISO 6149 Series
Thread Size
13/16-16 x M18x1.5

Similar Products

Model Number Connection Size 1 Connection Type 1 Connection Size 2 Thread Size Price Action
04MFS-14MM ISO6149 STRAIGHT

FS7640-04-14-O

1/4 in

Male ORFS

14 mm

9/16-18 x M14x1.5

06MFS-14MM ISO 6149 STRAIGHT

FS7640-06-14-O

3/8 in

Male ORFS

14 mm

11/16-16 x M14x1.5

06MFS-22MM ISO 6149 STRAIGHT

FS7640-06-22-O

3/8 in

Male ORFS

22 mm

11/16-16 x M22x1.5

08MFS-22MM ISO6149 STRAIGHT

FS7640-08-22-O

1/2 in

Male ORFS

22 mm

13/16-16 x M22x1.5

10MFS-22MM ISO 6149 STRAIGHT

FS7640-10-22-O

5/8 in

Male ORFS

22 mm

1-4 x M22x1.5

12MFS-27MM ISO 6149 Straight

FS7640-12-27-O

3/4 in

Male ORFS

1-3/16-12 x M27x2

16MFS-33MM ISO 6149 STRAIGHT

FS7640-16-33-O

1 in

Male ORFS

1-7/16-12 x M33x2

Product Questions & Answers (1)

Question by: Earl C on Jul 10, 2025, 3:27 PM
Hey, will this here fitting work to hook up a M18 port to a 13/16 face seal?
Answer by: Customer Support on Jul 11, 2025, 9:46 PM
That's what it's for. This straight adapter connects an M18x1.5 male metric ISO 6149 O-ring port thread to a 13/16-16 male face seal O-ring (SAE J1453) thread.
