08MFS-22MM ISO6149 STRAIGHT

Description & Features

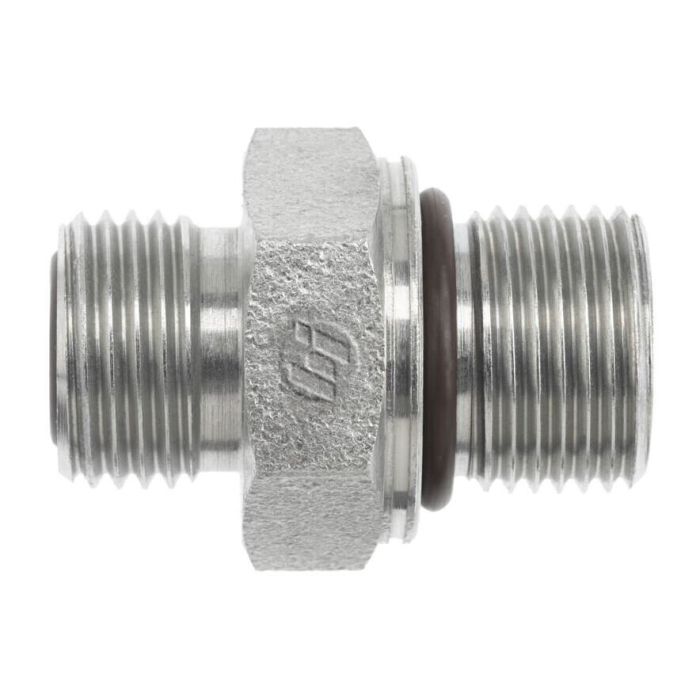

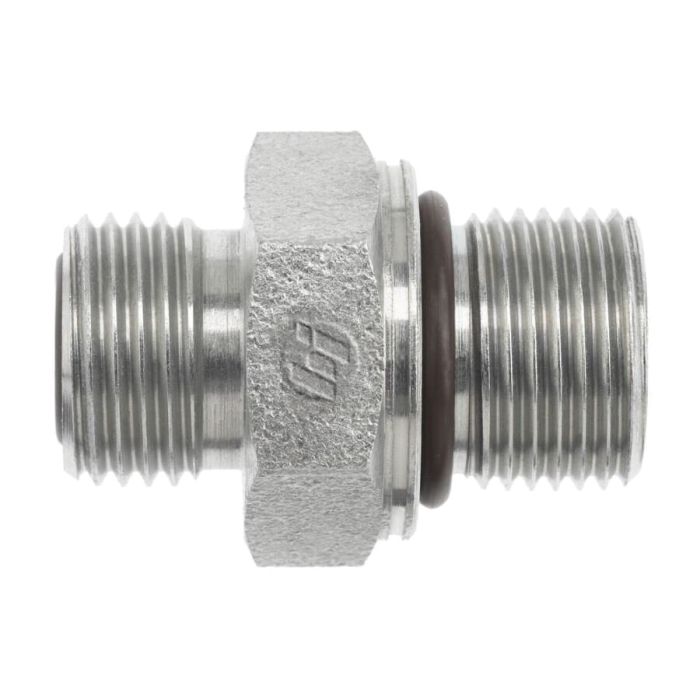

Designed for straight-configuration connections between SAE J1453 and ISO 6149 O-ring port threads, the 08MFS-22MM ISO6149 Straight adapter provides a reliable transition commonly required in mixed-standard hydraulic circuits. The male face seal end features a 13/16-16 thread, while the male metric end runs an M22x1.5 thread conforming to the ISO 6149 O-ring port standard.

Constructed from steel with an NBR O-ring seal, this fitting is built for dependable sealing performance in fluid power applications. The dual O-ring design, face seal on one end, metric O-ring port on the other, helps minimize leak paths at both connection points. Manufactured by Brennan Industries under the Fs7640-O-ISO 6149 series, this fitting carries a California Proposition 65 warning for applicable buyers.

SKU: FS7640-08-22-O

Supplier Part Number (MPN): FS7640-08-22-O

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
22 mm
Connection Type
Male Metric, Male ORFS
Connection Type 1
Male ORFS
Connection Type 2
Male Metric ORB
Dimension Standards
SAE J1453
Finish
Zinc Trivalent
Fitting Type
Adapter
Hex Size
1.06 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Seam Material
NBR
Series
FS7640-O-ISO 6149 Series
Thread Size
13/16-16 x M22x1.5
Thread Specification B2
ISO 6149 O-ring Port

Similar Products

Model Number Connection Size 1 Connection Type 1 Connection Size 2 Thread Size Price Action
04MFS-14MM ISO6149 STRAIGHT

FS7640-04-14-O

1/4 in

Male ORFS

14 mm

9/16-18 x M14x1.5

06MFS-14MM ISO 6149 STRAIGHT

FS7640-06-14-O

3/8 in

Male ORFS

14 mm

11/16-16 x M14x1.5

06MFS-22MM ISO 6149 STRAIGHT

FS7640-06-22-O

3/8 in

Male ORFS

22 mm

11/16-16 x M22x1.5

08MFS-18MM ISO 6149 STRAIGHT

FS7640-08-18-O

1/2 in

Male SAE ORFS

M18x1.5

13/16-16 x M18x1.5

10MFS-22MM ISO 6149 STRAIGHT

FS7640-10-22-O

5/8 in

Male ORFS

22 mm

1-4 x M22x1.5

12MFS-27MM ISO 6149 Straight

FS7640-12-27-O

3/4 in

Male ORFS

1-3/16-12 x M27x2

16MFS-33MM ISO 6149 STRAIGHT

FS7640-16-33-O

1 in

Male ORFS

1-7/16-12 x M33x2

Product Questions & Answers (1)

Question by: Ricky W on Apr 25, 2025, 9:16 PM
Will this here fitting work to join a SAE J1453 to an ISO 6149 setup?
Answer by: Customer Support on Apr 27, 2025, 11:03 AM
Yes, this adapter is designed to provide a reliable connection between SAE J1453 and ISO 6149 O-ring port threads.
