10MFS-22MM ISO 6149 STRAIGHT

Description & Features

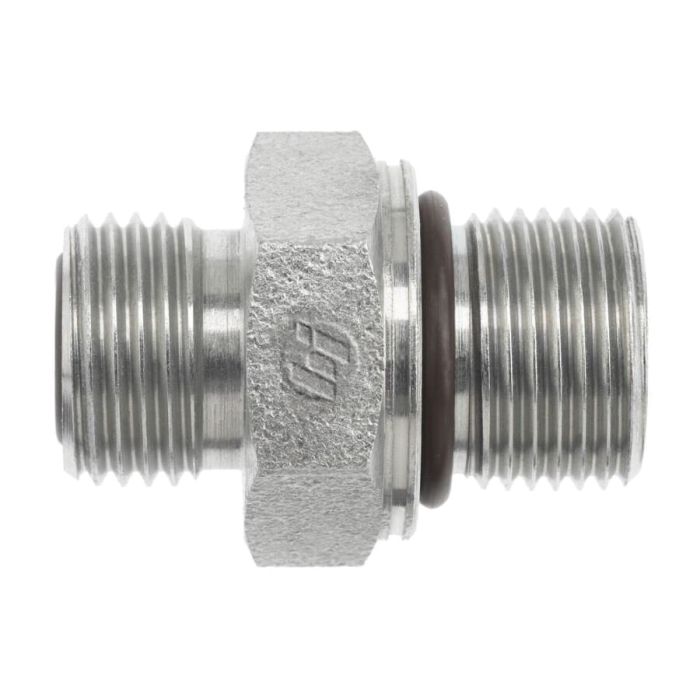

This straight steel fitting, the 10MFS-22MM ISO 6149 STRAIGHT, is part of the FS7640-O-ISO 6149 series from Brennan Industries. It features a male face seal O-ring with a 1-14 thread size (SAE J1453 specification) and a male metric ISO 6149 O-ring with M22X1.5 thread size.

The O-ring seal is made of NBR (Nitrile Butadiene Rubber) for reliable sealing performance. Note for California residents: This product contains a Prop 65 warning.

SKU: FS7640-10-22-O

Supplier Part Number (MPN): FS7640-10-22-O

Specifications

Brand
BRENNAN
Connection Size 1
5/8 in
Connection Size 2
22 mm
Connection Type
Male Metric, Male ORFS
Connection Type 1
Male ORFS
Connection Type 2
Male Metric ORB
Dimension Standards
SAE J1453
Finish
Zinc Trivalent
Fitting Type
Adapter
Hex Size
1.06 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Seam Material
NBR
Series
FS7640-O-ISO 6149 Series
Thread Size
1-4 x M22x1.5
Thread Specification B2
ISO 6149 O-ring Port

Similar Products

Model Number Connection Size 1 Connection Type 1 Connection Size 2 Thread Size Price Action
04MFS-14MM ISO6149 STRAIGHT

FS7640-04-14-O

1/4 in

Male ORFS

14 mm

9/16-18 x M14x1.5

06MFS-14MM ISO 6149 STRAIGHT

FS7640-06-14-O

3/8 in

Male ORFS

14 mm

11/16-16 x M14x1.5

06MFS-22MM ISO 6149 STRAIGHT

FS7640-06-22-O

3/8 in

Male ORFS

22 mm

11/16-16 x M22x1.5

08MFS-18MM ISO 6149 STRAIGHT

FS7640-08-18-O

1/2 in

Male SAE ORFS

M18x1.5

13/16-16 x M18x1.5

08MFS-22MM ISO6149 STRAIGHT

FS7640-08-22-O

1/2 in

Male ORFS

22 mm

13/16-16 x M22x1.5

12MFS-27MM ISO 6149 Straight

FS7640-12-27-O

3/4 in

Male ORFS

1-3/16-12 x M27x2

16MFS-33MM ISO 6149 STRAIGHT

FS7640-16-33-O

1 in

Male ORFS

1-7/16-12 x M33x2

Product Questions & Answers (1)

Question by: Lyle J on Nov 7, 2025, 10:35 AM
What kind of seal does this use? I see something about an O-ring.
Answer by: Customer Support on Nov 9, 2025, 6:42 AM
This fitting uses an NBR (Nitrile Butadiene Rubber) O-ring for sealing. It's designed to provide a reliable seal in hydraulic applications.
