12MFS-27MM ISO 6149 Straight

Description & Features

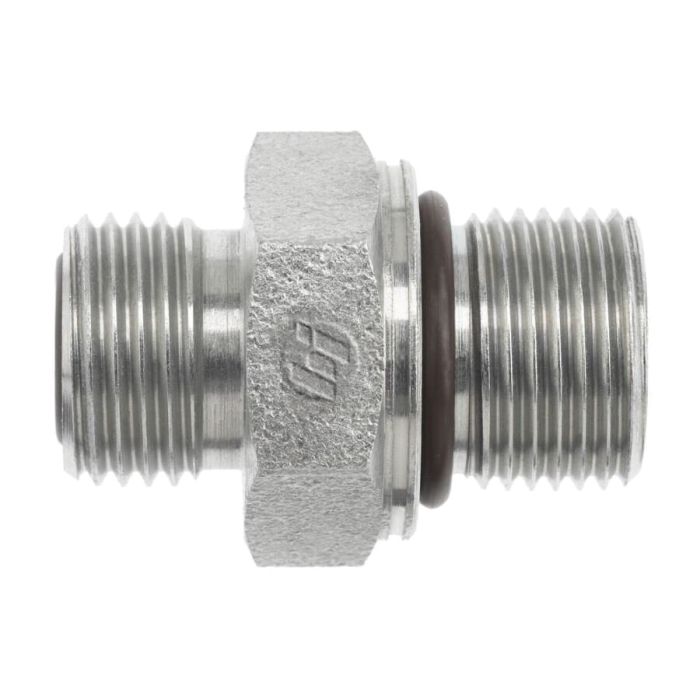

This straight steel fitting, designated as 12MFS-27MM ISO 6149 Straight, features a Male Face Seal O-Ring (SAE J1453) with a thread size of 1-3/16-12. It also incorporates a Male Metric ISO 6149 O-Ring with a thread size of M27X2.0.

The Brennan Oring Seal Material is NBR. This fitting conforms to the FS7640-O-ISO 6149 Brennan series.

SKU: FS7640-12-27-O

Supplier Part Number (MPN): FS7640-12-27-O

Specifications

Brand
BRENNAN
Connection Size 1
3/4 in
Connection Type
Male Metric, Male ORFS
Connection Type 1
Male ORFS
Connection Type 2
Male Metric ORB
Dimension Standards
SAE J1453
Finish
Zinc Trivalent
Fitting Type
Adapter
Hex Size
1.26 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Seam Material
NBR
Series
FS7640-O-ISO 6149 Series
Thread Size
1-3/16-12 x M27x2
Thread Specification B2
ISO 6149 O-ring Port

Similar Products

Model Number Connection Size 1 Connection Type 1 Connection Size 2 Thread Size Price Action
04MFS-14MM ISO6149 STRAIGHT

FS7640-04-14-O

1/4 in

Male ORFS

14 mm

9/16-18 x M14x1.5

06MFS-14MM ISO 6149 STRAIGHT

FS7640-06-14-O

3/8 in

Male ORFS

14 mm

11/16-16 x M14x1.5

06MFS-22MM ISO 6149 STRAIGHT

FS7640-06-22-O

3/8 in

Male ORFS

22 mm

11/16-16 x M22x1.5

08MFS-18MM ISO 6149 STRAIGHT

FS7640-08-18-O

1/2 in

Male SAE ORFS

M18x1.5

13/16-16 x M18x1.5

08MFS-22MM ISO6149 STRAIGHT

FS7640-08-22-O

1/2 in

Male ORFS

22 mm

13/16-16 x M22x1.5

10MFS-22MM ISO 6149 STRAIGHT

FS7640-10-22-O

5/8 in

Male ORFS

22 mm

1-4 x M22x1.5

16MFS-33MM ISO 6149 STRAIGHT

FS7640-16-33-O

1 in

Male ORFS

1-7/16-12 x M33x2

Product Questions & Answers (1)

Question by: Glen W on Oct 19, 2025, 12:51 PM
Just want to make sure, this is a straight fitting, right?
Answer by: Customer Support on Oct 20, 2025, 2:25 PM
Yes, this is a straight steel fitting.
