16MFS-33MM ISO 6149 STRAIGHT

Description & Features

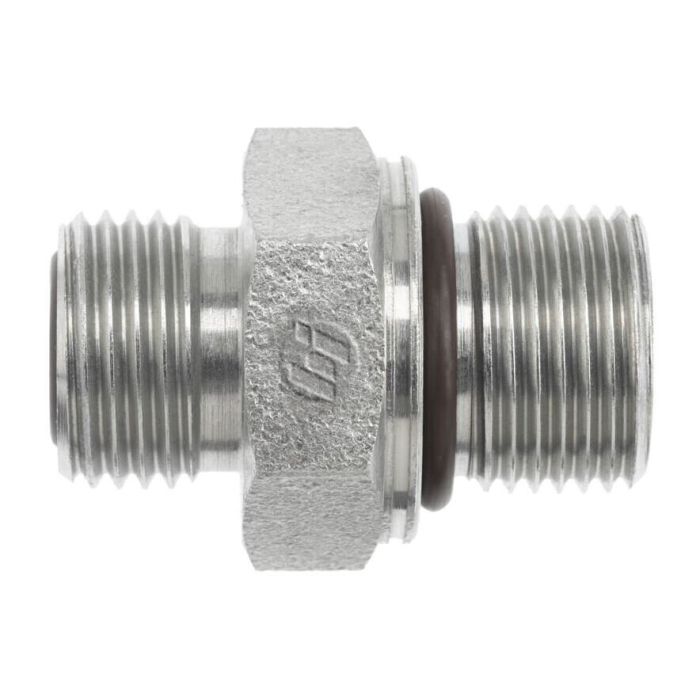

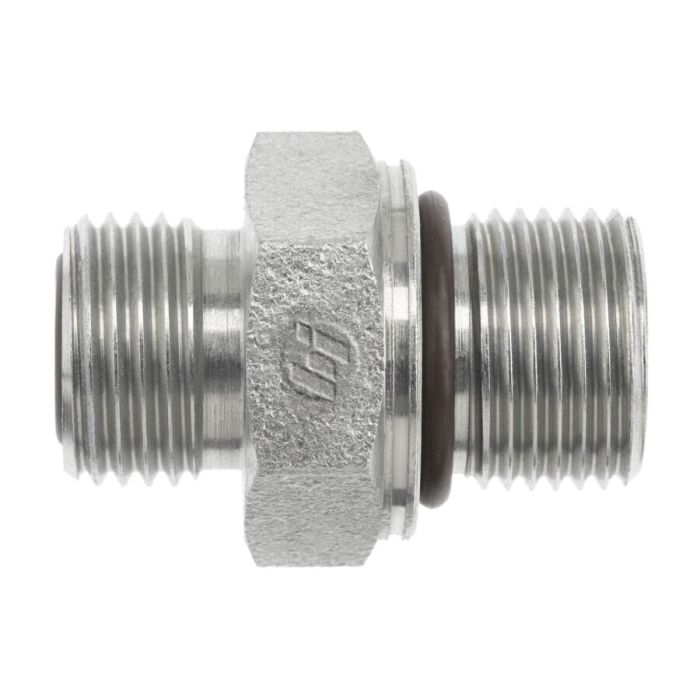

Designed for metric-to-face-seal conversions in steel hydraulic assemblies, the 16MFS-33MM ISO 6149 Straight fitting connects a 1-7/16-12 male face seal O-ring thread (SAE J1453) on one end to an M33x2.0 male metric ISO 6149 O-ring port thread on the other. The straight configuration keeps connections in-line, making it a practical choice where space and alignment constraints favor a direct coupling between mismatched thread standards.

Constructed from straight steel with an NBR O-ring seal, this fitting is suited for hydraulic systems where reliable sealing between SAE and ISO metric ports is required. The NBR seal material offers compatibility with a broad range of hydraulic fluids commonly used in industrial and mobile equipment applications. California residents should note this product carries a Proposition 65 warning.

SKU: FS7640-16-33-O

Supplier Part Number (MPN): FS7640-16-33-O

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Type
Male Metric, Male ORFS
Connection Type 1
Male ORFS
Connection Type 2
Male Metric ORB
Dimension Standards
SAE J1453
Finish
Zinc Trivalent
Fitting Type
Adapter
Hex Size
1.614 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Seam Material
NBR
Series
FS7640-O-ISO 6149 Series
Thread Size
1-7/16-12 x M33x2
Thread Specification B2
ISO 6149 O-ring Port

Similar Products

Model Number Connection Size 1 Connection Type 1 Connection Size 2 Thread Size Price Action
04MFS-14MM ISO6149 STRAIGHT

FS7640-04-14-O

1/4 in

Male ORFS

14 mm

9/16-18 x M14x1.5

06MFS-14MM ISO 6149 STRAIGHT

FS7640-06-14-O

3/8 in

Male ORFS

14 mm

11/16-16 x M14x1.5

06MFS-22MM ISO 6149 STRAIGHT

FS7640-06-22-O

3/8 in

Male ORFS

22 mm

11/16-16 x M22x1.5

08MFS-18MM ISO 6149 STRAIGHT

FS7640-08-18-O

1/2 in

Male SAE ORFS

M18x1.5

13/16-16 x M18x1.5

08MFS-22MM ISO6149 STRAIGHT

FS7640-08-22-O

1/2 in

Male ORFS

22 mm

13/16-16 x M22x1.5

10MFS-22MM ISO 6149 STRAIGHT

FS7640-10-22-O

5/8 in

Male ORFS

22 mm

1-4 x M22x1.5

12MFS-27MM ISO 6149 Straight

FS7640-12-27-O

3/4 in

Male ORFS

1-3/16-12 x M27x2

Product Questions & Answers (1)

Question by: Bobby H on Mar 17, 2026, 6:11 PM
So, this here adapter goes from a SAE to a metric thread, right? Just makin' sure I'm readin' that correctly.
Answer by: Customer Support on Mar 18, 2026, 9:42 PM
You got it. This fitting adapts from a 1-7/16-12 male face seal O-ring thread (SAE J1453) to an M33x2.0 male metric ISO 6149 O-ring port thread.
