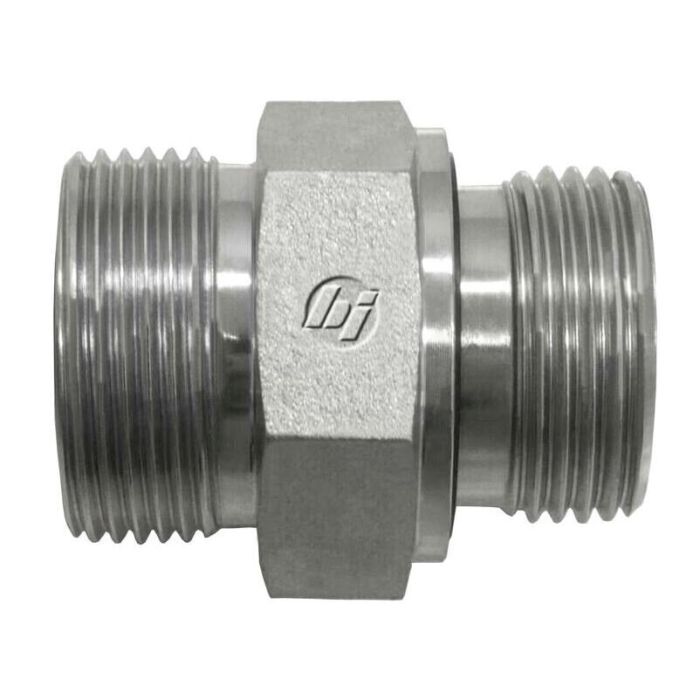

04MFS-14MM STRAIGHT W/CAPTIVE SEAL

Description & Features

Designed for cross-system metric-to-SAE connections, the 04MFS-14MM Straight W/Captive Seal is a straight steel hydraulic fitting from Brennan Industries' FS7701-ED series. It connects a 9/16-18 male face seal O-ring thread (SAE J1453) on one end to an M14x1.5 male metric ED seal thread on the other, making it well-suited for adapting between SAE face seal ports and ISO 9974 metric ports.

The captive ED seal design retains the NBR O-ring during installation, helping to maintain sealing integrity at the connection point. Steel construction provides durability in demanding hydraulic circuit applications. California residents should note this product is subject to Proposition 65 warnings as designated by Brennan Industries.

SKU: FS7701-04-14

Supplier Part Number (MPN): FS7701-04-14

Specifications

Connection Size 1 1/4 in	Connection Size 2 14 mm	Connection Type Male Metric, Male ORFS	Connection Type 1 Male ORFS	Connection Type 2 Male Metric Elastomeric Seal	Dimension Standards SAE J1453	Finish Zinc Trivalent	Fitting Type Adapter	Hex Size 3/4 in	Material Steel	Material Construction 12L14/C1045 Steel	Operating Temperature -40 to 250 deg F	Seam Material NBR	Series FS7701 Series	Thread Size 9/16-18 x M14x1.5	Thread Specification B2 For ISO 9974 Port

Product Questions & Answers (1)

Question by: Connie R on Feb 11, 2026, 9:58 PM

Will this here fitting work to hook up a SAE face seal to a metric ED seal? I got a machine with both types of ports and need somethin' to get 'em connected.

Answer by: Customer Support on Feb 13, 2026, 6:13 AM

This straight steel fitting adapts between a 9/16-18 male face seal O-ring thread (SAE J1453) and an M14x1.5 male metric ED seal thread. It's made for linking SAE face seal ports and ISO 9974 metric ports, so it sounds like just what you need.
