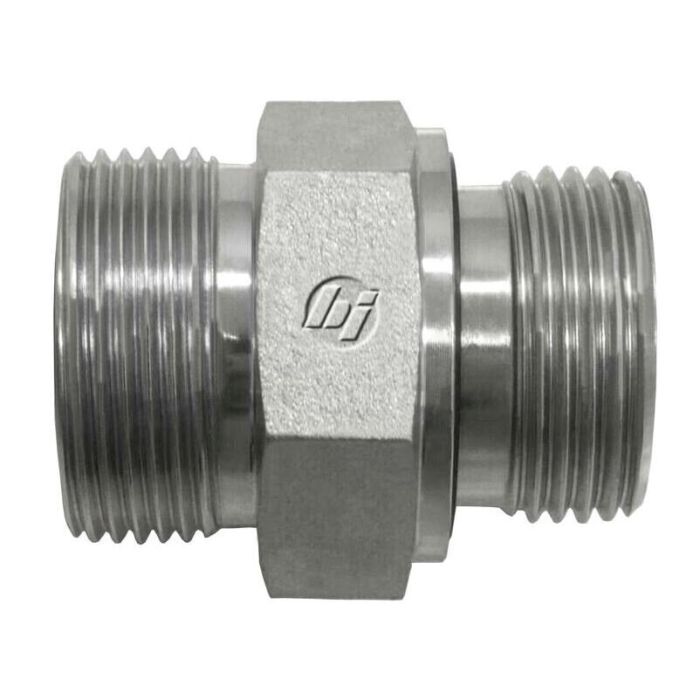

06MFS-14MM STRAIGHT W/CAPTIVE SEAL

Description & Features

Engineered for precision and reliability, the 06MFS-14MM STRAIGHT W/CAPTIVE SEAL is a versatile hydraulic fitting, perfect for industrial applications. This fitting features a robust straight steel construction, ensuring durability under demanding conditions. Equipped with a captive NBR O-ring seal, it provides exceptional leak prevention and secure connections.

Designed to meet SAE J1453 standards, this fitting boasts a dual-thread configuration: a male face seal O-ring with a thread size of 11/16-16, and a male metric ED seal with a thread specification of M14x1.5, compliant with ISO 9974 ports. Manufactured by Brennan Industries, this component is part of the FS7701-ED series, offering compatibility and performance consistency across various systems.

SKU: FS7701-06-14

Supplier Part Number (MPN): FS7701-06-14

Specifications

Connection Size 1 3/8 in	Connection Size 2 14 mm	Connection Type Male Metric, Male ORFS	Connection Type 1 Male ORFS	Connection Type 2 Male Metric Elastomeric Seal	Dimension Standards SAE J1453	Finish Zinc Trivalent	Fitting Type Adapter	Hex Size 3/4 in	Material Steel	Material Construction 12L14/C1045 Steel	Operating Temperature -40 to 250 deg F	Seam Material NBR	Series FS7701 Series	Thread Size 11/16-16 x M14x1.5	Thread Specification B2 For ISO 9974 Port

Product Questions & Answers (1)

Question by: Scott M on Dec 7, 2025, 5:53 PM

Will this here fitting hold up to some vibration on a hydraulic pump?

Answer by: Customer Support on Dec 9, 2025, 4:47 PM

This straight steel fitting is designed for durability, so it should provide a reliable connection even where there's vibration.
