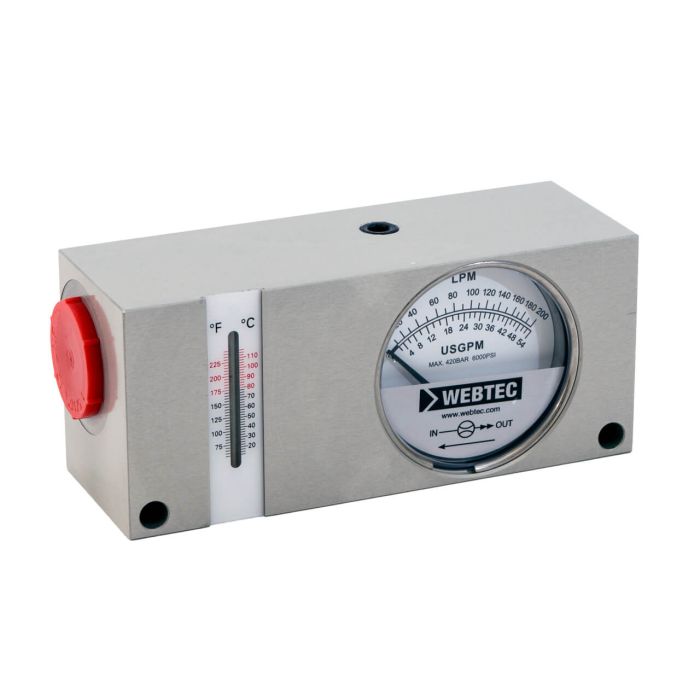

main product photo

RFI Series Reversible Flow Indicator RFI120-S-6 | FT10039-09

Ask A Question

Description & Features

The RFI120-S-6 is a reversible flow indicator from WEBTEC's RFI Series, designed to monitor flow in both directions across a working range of 10 to 120 L/min (4 to 32 US gpm). Rated to 420 bar (6,000 psi), it suits demanding hydraulic circuit monitoring where high-pressure capability is essential. Flow accuracy is ±4% of full scale, with a temperature reading accuracy of ±2.5°C (±5°F).

Fluid temperature limits span 20 to 80°C (65 to 176°F) for continuous service, with intermittent tolerance up to 110°C (230°F) for short durations. Ambient use is rated from -10 to 50°C (14 to 122°F). The body is machined from aluminium 2011T6, with stainless steel and brass internal components, and NBR or FKM seals for compatibility with mineral oils to ISO 11158. Connection is via a 1-5/16" -12UN #24 SAE ORB port. Net weight is 2 kg (4.4 lbs).

SKU: FT10039-09
Supplier Part Number (MPN): RFI120-S-6

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
FT10039-09
Flow Accuracy
±4% Full Scale
Temperature Accuracy
±2.5°C / ±5°F
Ambient Temperature
-10 to 50°C, 14 to 122°F
Body Materials
Aluminium 2011T6
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Flow Range (US gpm)
4 - 32
Flow Range (L/min)
10 -120
Fluid Temperature Range
20 to 80°C 65 to 176°F cont use. Intermittently (<10 mins) up to 110°C, 230°F
Gross Weight
2.1 kg, 4.6lbs
Internal Materials
Stainless Steel, Brass
Maximum Rated Flow
120 L/min, 32 US gpm
Max Rated Pressure
420 bar, 6000 psi
Net Weight
2 kg, 4.4 lbs
Porting
1-5/16” -12UN #24 SAE ORB
Seals
NBR / FKM
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Stan S on Jun 12, 2025, 7:08 AM
what's the max pressure this thing handles? got a system running at 5500 psi and want to make sure it won't be a problem
Answer by: Customer Support on Jun 13, 2025, 5:50 PM
Rated to 420 bar, which works out to 6000 psi, so 5500 psi puts you comfortably within spec. Flow range runs from 10 to 120 L/min (4 to 32 US gpm), and accuracy is plus or minus 4% of full scale. Port is a 1-5/16"-12UN #24 SAE ORB, so just confirm your line fitting matches before you bolt it in.
Question by: Diane B on Apr 7, 2026, 9:51 PM
How do I know if the RFI120-S-6 flow indicator will fit my hydraulic system?
Answer by: Customer Support on Apr 9, 2026, 11:52 AM
The RFI120-S-6 flow indicator is designed with a 1-5/16” -12UN #24 SAE ORB porting, making it compatible with systems that use this connection type. It supports flow rates from 10 to 120 L/min and operates effectively under pressures up to 420 bar, ensuring it can handle demanding hydraulic systems.
