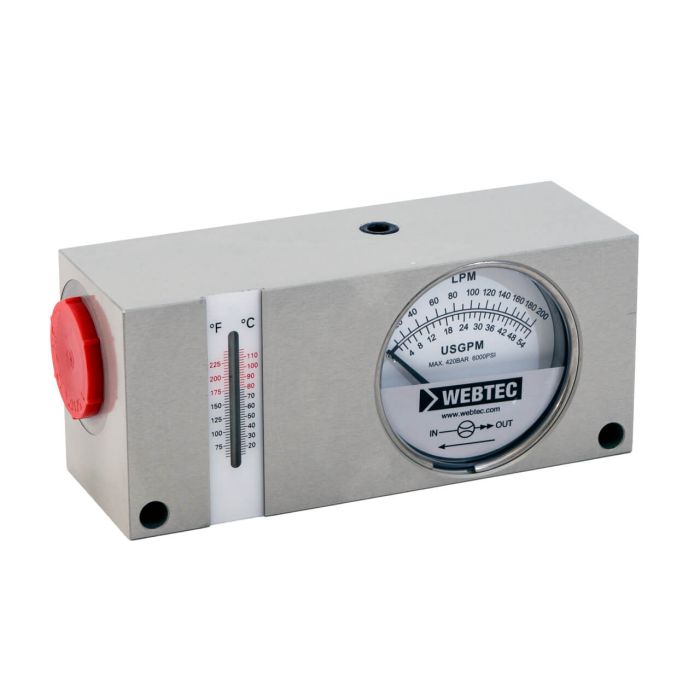

RFI Series Reversible Flow Indicator RFI200-B-6 | FT10039-22

Part of the RFI Series, this WEBTEC reversible flow indicator is designed for continuous monitoring of bidirectional flow in hydraulic circuits. It handles a working range of 10 to 200 L/min (4 to 50 US gpm) and is rated to 420 bar (6000 psi), making it suitable for demanding high-pressure service. Flow accuracy is ±4% of full scale, with temperature measurement accuracy of ±2.5°C (±5°F).

Fluid temperatures up to 80°C (176°F) are supported in continuous service, with intermittent tolerance up to 110°C (230°F) for periods under ten minutes. The unit connects via 1" BSPP porting and is constructed from aluminium 2011T6 with stainless steel and brass internals. Seals are available in NBR or FKM to suit the application. Compatible with mineral oils to ISO 11158, with alternative fluids available on request. Net weight is 2 kg (4.4 lbs).

SKU: FT10039-22
Supplier Part Number (MPN): RFI200-B-6
