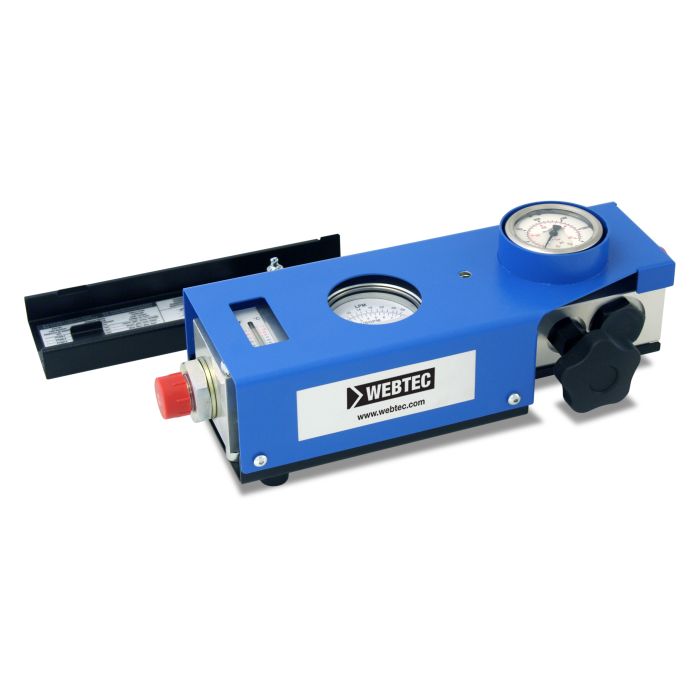

RFIK Series Mechanical Hydraulic Tester RFIK200-S-6 | FT10040-12

Ask A Question

Description & Features

The RFIK Series Mechanical Hydraulic Tester RFIK200-S-6 is a reliable choice for servicing and commissioning hydraulic circuits, offering maximum flow rates up to 204 L/min (54 US gpm) and handling pressures as high as 420 bar (6000 psi). Engineered with precision, it ensures flow accuracy within ±4% full scale and pressure accuracy within ±1.6% full scale. The robust construction features an aluminum body and internal components made from stainless steel and brass, with NBR seals to ensure durability and reliability. Designed to operate within a fluid temperature range of 20 to 80°C (68 to 176°F) and an ambient temperature range of -10 to 50°C (14 to 122°F), this hydraulic tester is well-suited for a variety of environments.

Compatible with mineral oils per ISO 11158, the RFIK200-S-6 requires no external power supply and is equipped with a 1” BSPP porting. With a net weight of 6.6 kg (14.4 lbs), this portable and efficient tester is an essential tool for hydraulic professionals.

SKU: FT10040-12

Supplier Part Number (MPN): RFIK200-S-6

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
FT10040-12
Flow Accuracy
±4% Full Scale
Pressure Accuracy
±1.6% Full Scale
Temperature Accuracy
±2.5°C / ±5°F
Ambient Temperature
-10 to 50°C, 14 to 122°F
Body Materials
Aluminium
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Flow Range (US gpm)
4 - 54
Flow Range (L/min)
10 - 200
Fluid Temperature Range
20 to 80°C, 68 to 176°F
Gross Weight
7.6 kg, 16.7 lbs
Internal Materials
Stainless Steel, Brass
Maximum Rated Flow
204 L/min, 54 US gpm
Max Rated Pressure
420 bar, 6000 psi
Net Weight
6.6 kg, 14.4 lbs
Porting
1” BSPP
Power Supply
No Power Required
Seals
NBR
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (1)

Question by: Diane M on Mar 16, 2026, 2:27 PM
does this thing need to be hooked up to anything to get a reading, or does it run on its own?
Answer by: Customer Support on Mar 18, 2026, 9:39 AM
No external power source needed. The RFIK200-S-6 is fully mechanical, so you get flow, pressure, and temperature readings without wiring, batteries, or any electrical hookup. That makes it pretty straightforward to throw in a service truck and use it wherever the machine is sitting.
