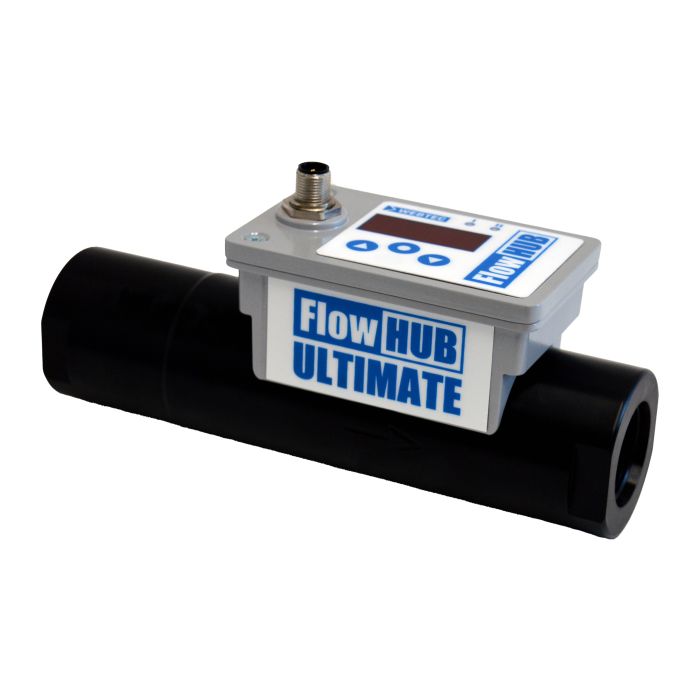

main product photo

FlowHUB Series Flow & temperature: Measure, display, switch, transmit HF032-ULTMA-6-S100V | FT10180-10

Ask A Question

Description & Features

The WEBTEC HF032-ULTMA-6-S100V is a FlowHUB Series instrument designed for condition monitoring and closed-loop hydraulic control. Handling a flow range of 4 to 120 L/min (1 to 32 US gpm) at pressures up to 420 bar (6000 psi), it combines measurement, display, switching, and analogue transmission in a single compact unit. Flow accuracy is rated at plus or minus 3% full scale, while the integrated temperature measurement delivers accuracy of plus or minus 2.5°C (5°F) across a fluid temperature range of 5 to 90°C (41 to 194°F).

The aluminium body connects via 3/4" BSPP porting and uses an M12 5-pin male electrical connection. Internal wetted components are brass, stainless steel, and carbon steel with NBR seals, making the unit compatible with mineral oils to ISO 11158. An IP64 rating suits use in industrial environments, and the unit weighs 2 kg (4.4 lbs).

SKU: FT10180-10
Supplier Part Number (MPN): HF032-ULTMA-6-S100V

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
FT10180-10
Flow Accuracy
±3% Full Scale
Temperature Accuracy
±2.5°C / ±5°F
Ambient Temperature
0 to 50°C, 32 to 122°F
Body Materials
Aluminium
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Connection Type
M12 5-Pin Male
Flow Range (US gpm)
1 -32
Flow Range (L/min)
4 - 120
Fluid Temperature Range
5 to 90°C, 41 to 194°F
Gross Weight
2.1 kg, 4.6lbs
Internal Materials
Brass, Stainless Steel, Carbon Steel
IP Rating
IP64
Maximum Rated Flow
120 L/min, 32 US gpm
Max Rated Pressure
420 bar, 6000 psi
Net Weight
2 kg, 4.4 lbs
Porting
3/4” BSPP
Seals
NBR
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Pete H on Mar 31, 2026, 1:12 PM
Flow range on this thing goes from 4 to 120 liters per minute, is that accurate, and what kind of accuracy are we talking across that whole range?
Answer by: Customer Support on Apr 2, 2026, 12:38 PM
Reads flow anywhere from 4 to 120 L/min, which is 1 to 32 US gpm. Accuracy is rated at ±3% of full scale across that range. Worth knowing that full-scale accuracy means the error margin is calculated against the top of the range, not the reading itself, so at lower flow rates the percentage of actual reading will be larger. The unit also measures temperature with ±2.5°C accuracy, so you're getting both measurements out of one device.
Question by: Clint A on Dec 16, 2025, 11:59 AM
Is the FlowHUB Series suitable for use with mineral oils?
Answer by: Customer Support on Dec 17, 2025, 12:49 PM
Yes, the FlowHUB Series is compatible with mineral oils according to ISO 11158 standards. If you have other fluid types in mind, you might want to check further, but for mineral oils, you're all set.
