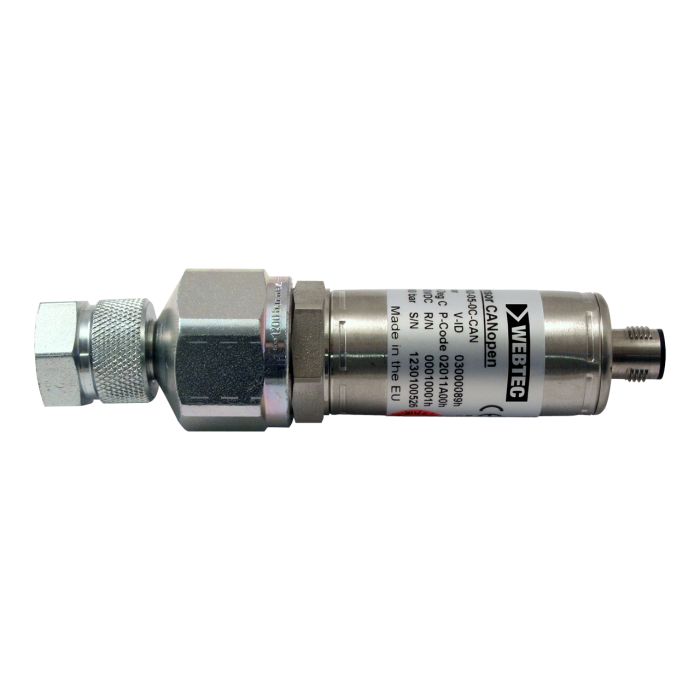

main product photo

Sensors for HPM Series Pressure/Temperature sensor SR-PTT-1K0-05-0C-CAN | FT10422-1K0

Ask A Question

Description & Features

The SR-PTT-1K0-05-0C-CAN is a dual-function pressure and temperature sensor designed for integration with WEBTEC HPM Series CAN data loggers. Rated to 1000 bar (14,500 psi), it delivers pressure measurement accuracy of ±0.5% full scale and temperature accuracy of ±3°C (±5.4°F), making it well suited to demanding hydraulic test work where both parameters need to be captured simultaneously through a single connection point.

The sensor connects via an M16 x 2 test point port and uses an M12 5-pin Code A electrical connector, accepting a 7–15 V DC supply. Wetted parts and the body are stainless steel 1.4302, with FKM seals providing compatibility with mineral oils to ISO 11158. The fluid temperature range covers -25 to 105°C (-13 to 221°F) for continuous use, and the IP54 rating gives adequate protection in typical workshop and field environments. At 0.3 kg, it adds minimal weight to any test arrangement.

SKU: FT10422-1K0
Supplier Part Number (MPN): SR-PTT-1K0-05-0C-CAN

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
FT10422-1K0
Pressure Accuracy
±0.5% Full Scale
Temperature Accuracy
±3°C / ±5.4°F
Ambient Temperature
26 to 85 °C, -13 to 185 °F
Body Materials
Stainless steel 1.4302
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Connection Type
M12 5-Pin Code A
Fluid Temperature Range
-25 to 105 °C, -13 to 221 °F continuous use
Gross Weight
0.3 kg, 0.66 lbs
Internal Materials
Stainless steel wetted parts
IP Rating
IP54
Max Rated Pressure
1000 bar, 14500 psi
Net Weight
0.3 kg, 0.66 lbs
Porting
M16 x 2 test point connector
Power Supply
7 – 15 V DC
Seals
FKM
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Shane A on Dec 31, 2025, 8:40 PM
sensor goes up to 1000 bar, is that continuous or just a peak rating?
Answer by: Customer Support on Jan 2, 2026, 11:36 AM
Rated for continuous use up to 1000 bar (14,500 psi), so that's not a spike or burst figure. Pressure accuracy holds at ±0.5% of full scale across that range. The wetted parts are all stainless steel, and the body is stainless steel 1.4302, so it's built to handle sustained high-pressure hydraulic environments without degrading quickly.
Question by: Terry H on Nov 14, 2025, 11:05 AM
How does the SR-PTT-1K0-05-0C-CAN sensor perform under high pressure conditions?
Answer by: Customer Support on Nov 15, 2025, 1:14 PM
It reads pressures up to 1000 bar, or 14500 psi, with an accuracy of ±0.5% Full Scale, making it suitable for high-pressure environments where precision is key.
