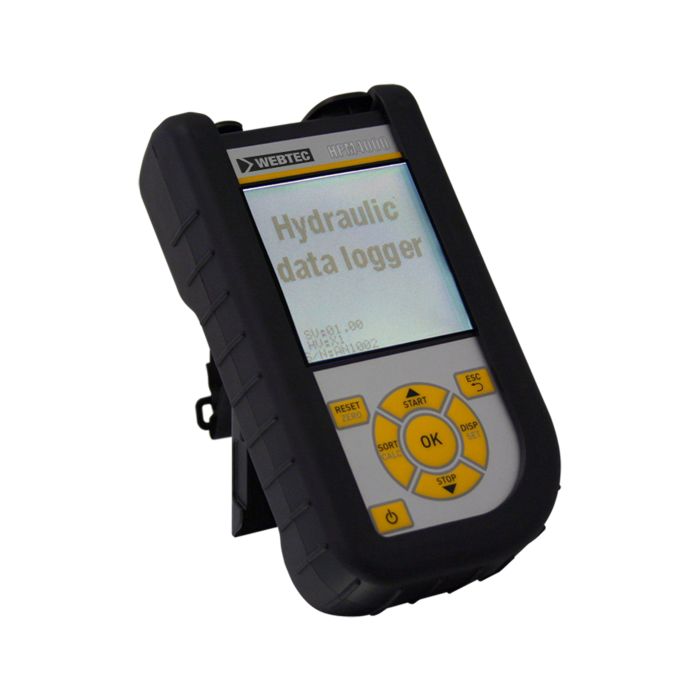

HPM4000 Series Hydraulic data logger - CAN SR-HPM-4030-05-0C-CAN | FT10648-030

Ask A Question

Description & Features

Built for demanding field service environments, the WEBTEC HPM4000 Series handheld hydraulic data logger combines diagnostic capability with practical portability in a compact ABS/PC housing weighing just 0.5 kg. The SR-HPM-4030-05-0C-CAN variant adds CAN connectivity alongside a USB interface, with electrical connection via a 1 x M12 5-Pin Code A connector for reliable integration with hydraulic test setups.

Rated IP67, the unit handles exposure to dust and water ingress without compromise to performance. Battery life exceeds 8 hours when running two sensors simultaneously, making it suitable for extended field sessions. Power can also be supplied from a 100–240 V AC source where a mains connection is available. An ambient operating range of 0 to 50 °C (34 to 122 °F) covers the majority of typical hydraulic test and service conditions.

SKU: FT10648-030
Supplier Part Number (MPN): SR-HPM-4030-05-0C-CAN

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
FT10648-030
Ambient Temperature
0 to 50 °C, 34 to 122 °F
Battery Life
With 2 sensors >8 hours
Body Materials
ABS/PC
Connection Type
1 x M12 5-Pin Code A + USB
Gross Weight
0.5 kg, 1.1 lbs
IP Rating
IP67
Net Weight
0.5 kg, 1.1 lbs
Power Supply
100 – 240 V AC
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (1)

Question by: Larry F on May 2, 2026, 8:25 PM
What's the best way to hook up the HPM4000 for data logging tasks?
Answer by: Customer Support on May 4, 2026, 7:27 AM
The HPM4000 hydraulic data logger connects using a 1 x M12 5-Pin Code A interface along with a USB port. It's designed for ease of setup, allowing for straightforward integration into your hydraulic system diagnostics. Just make sure your power source is between 100 – 240 V AC for optimal operation.
