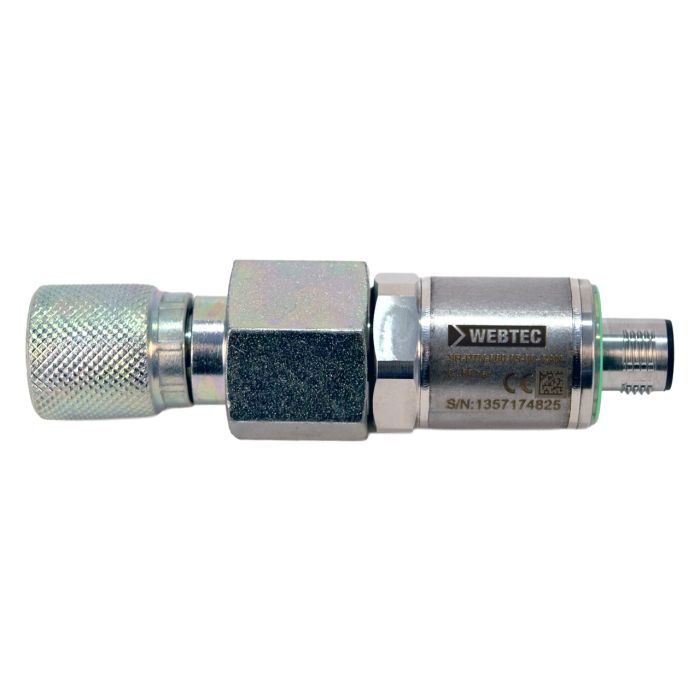

main product photo

Sensors for HPM Series Pressure Transducer SR-PTN-060-05-0C-CAN | FT10649-060

Ask A Question

Description & Features

The SR-PTN-060-05-0C-CAN is a compact CAN-bus pressure sensor designed to work with WEBTEC's HPM Series CAN data loggers, extending their measurement capability to hydraulic pressure monitoring. Rated to 60 bar (870 psi) with a pressure accuracy of plus or minus 0.5% full scale, it delivers reliable readings across a fluid temperature range of -25 to 105 degrees C (-13 to 221 degrees F) and an ambient range of -25 to 85 degrees C (-13 to 185 degrees F).

The stainless steel 1.4303 body with fully stainless wetted parts and FKM seals suits continuous service with mineral oils to ISO 11158. Connection to the system is made via an M16 x 2 test point port and an M12 5-pin Code A electrical connector. The sensor runs on 7 to 15 V DC, carries an IP54 rating, and weighs just 0.16 kg, making it straightforward to integrate into mobile or stationary HPM-based monitoring setups.

SKU: FT10649-060
Supplier Part Number (MPN): SR-PTN-060-05-0C-CAN

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
FT10649-060
Pressure Accuracy
±0.5% Full Scale
Ambient Temperature
-25 to 85 °C, -13 to 185 °F
Body Materials
Stainless steel 1.4303
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Connection Type
M12 5-Pin Code A
Fluid Temperature Range
-25 to 105 °C, -13 to 221 °F
Gross Weight
0.16 kg, 0.35 lbs
Internal Materials
Stainless steel wetted parts
IP Rating
IP54
Max Rated Pressure
60 bar, 870 psi
Net Weight
0.16 kg, 0.35 lbs
Porting
M16 x 2 test point connector
Power Supply
7 – 15 V DC
Seals
FKM
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Dean H on Feb 18, 2026, 3:15 PM
what's the pressure limit on this sensor, and is that enough for most hydraulic test work?
Answer by: Customer Support on Feb 19, 2026, 4:07 PM
Rated to 60 bar (870 psi), which covers a broad range of mobile and industrial hydraulic testing applications. Accuracy holds to within ±0.5% of full scale across that range, so you're getting reliable readings right up to the limit. For systems running significantly above 60 bar, you'd want a higher-rated sensor, but for general test point work this handles most common circuits without issue.
Question by: Neil A on Mar 8, 2026, 1:08 PM
Can the SR-PTN-060-05-0C-CAN pressure sensor handle high temperatures in industrial settings?
Answer by: Customer Support on Mar 10, 2026, 9:42 AM
This pressure sensor is built to function in environments with fluid temperatures ranging from -25 to 105 °C (-13 to 221 °F) and ambient temperatures of -25 to 85 °C (-13 to 185 °F). It's suitable for most industrial settings where such temperature conditions are common.
