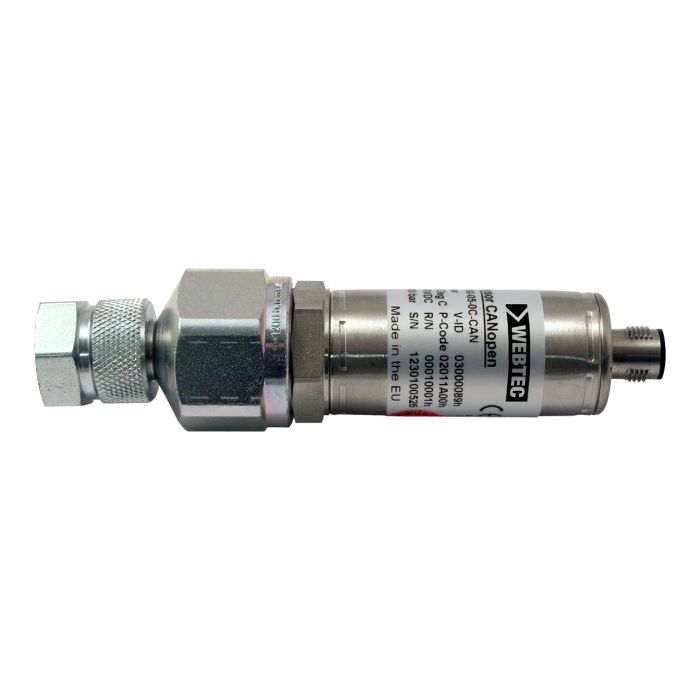

main product photo

Sensors for HPM Series Temperature Transducer SR-TTP-190-05-0C-CAN | FT10709

Ask A Question

Description & Features

The WEBTEC Sensors for HPM Series Temperature Transducer, model SR-TTP-190-05-0C-CAN, is designed to deliver accurate temperature readings in hydraulic systems. With a fluid temperature range of -40 to 150 °C (-40 to 302 °F) and an ambient temperature range of -40 to 70 °C (-40 to 158 °F), it ensures reliable performance in extreme conditions. Its robust stainless steel body and copper alloy internals are complemented by FKM seals, providing durability and resistance to harsh environments.

This sensor supports a maximum pressure of 630 bar (8700 psi) and boasts a temperature accuracy of ±1.5% Full Scale. The 1/4" BSPP male porting and M12 5-Pin Code A electrical connection make installation straightforward. Compatible with mineral oils to ISO 11158 standards, it also accommodates other fluids upon request. Operating on a 7–15 V DC power supply and rated at IP54, this sensor is both efficient and reliable.

SKU: FT10709
Supplier Part Number (MPN): SR-TTP-190-05-0C-CAN

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
FT10709
Temperature Accuracy
±1.5% Full Scale
Ambient Temperature
-40 to 70 °C, -40 to 158 °F
Body Materials
Stainless steel 1.4303
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Connection Type
M12 5-Pin Code A
Fluid Temperature Range
-40 to 150 °C, -40 to 302 °F
Gross Weight
0.07 kg, 0.15 lbs
Internal Materials
Copper Alloy
IP Rating
IP54
Max Rated Pressure
630 bar, 8700 psi
Net Weight
0.07 kg, 0.15 lbs
Porting
1/4" BSPP male
Power Supply
7 – 15 V DC
Seals
FKM
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Scott P on Sep 14, 2025, 7:20 PM
does this temp sensor work with any of the HPM CAN data loggers or just certain ones?
Answer by: Customer Support on Sep 16, 2025, 5:40 PM
Compatible with any HPM CAN data logger in the series. The M12 5-Pin Code A connector handles the CAN communication, and the sensor runs on 7 to 15 V DC, which fits standard HPM logger power outputs. No special configuration needed to pair them up.
Question by: Peggy C on Jun 27, 2025, 2:47 PM
how does the ambient temperature range affect the sensor's performance?
Answer by: Customer Support on Jun 28, 2025, 6:14 PM
In environments ranging from -40 to 70 °C, this sensor maintains reliable operation without performance loss, making it suitable for a variety of industrial conditions.
