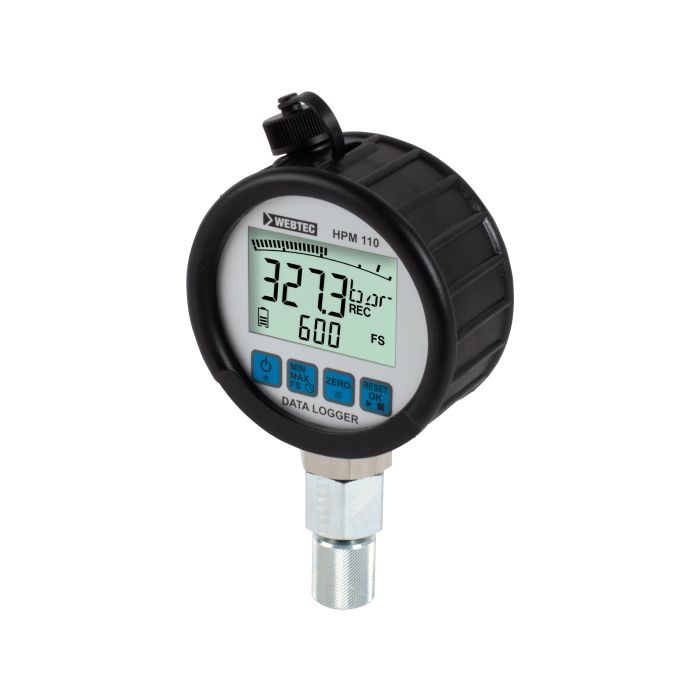

main product photo

HPM110 Series Digital Pressure Gauge SR-HPM-110-DL-UN-8700 | FT11290-8K7

Ask A Question

Description & Features

The WEBTEC HPM110 Series digital pressure gauge is a compact, battery-operated instrument designed for monitoring oil pressure in hydraulic equipment across a wide range of mobile and industrial applications. Rated to 600 bar (8700 psi) with a pressure accuracy of ±0.5% full scale, it delivers reliable readings without the need for an external power source, running on two standard AA batteries for up to 600 hours of service.

The gauge connects via a 1/4" BSPP female port and an M16 x 2 female electrical connection, with a fluid temperature range of -20 to 80 °C (-4 to 176 °F) and an ambient temperature range of -10 to 50 °C (14 to 122 °F). Compatible with oil and water-based fluids, the unit is built around a zinc die-cast body with a TPE rubber protection cover, stainless steel internals, and NBR seals. An IP65 rating ensures resistance to dust ingress and water jets, making it well suited to demanding field use.

SKU: FT11290-8K7
Supplier Part Number (MPN): SR-HPM-110-DL-UN-8700

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
FT11290-8K7
Pressure Accuracy
±0.5% Full Scale
Ambient Temperature
-10 to 50 °C, 14 to 144 °F
Battery Life
600h
Body Materials
Zinc die casting with TPE rubber protection cover
Compatible Fluid
Oil / Water (other fluids on request)
Connection Type
M16 x 2 Female
Fluid Temperature Range
-20 to 80 °C, 4 to 176 °F
Gross Weight
0.5 kg, 1.1 lbs
Internal Materials
Stainless Steel
IP Rating
IP65
Max Rated Pressure
600 bar, 8700 psi
Net Weight
0.5 kg, 1.1 lbs
Porting
1/4" BSPP female
Power Supply
2 x AA Battery (1.5V)
Seals
NBR
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (1)

Question by: Kirk W on Dec 24, 2025, 7:07 AM
battery powered, so what kind of runtime are we looking at between changes?
Answer by: Customer Support on Dec 25, 2025, 4:18 PM
Running on two standard AA batteries at 1.5V each, you'll get around 600 hours of use before needing a swap. That's a solid stretch for most shop or field applications where the gauge isn't running nonstop. AA batteries are easy to source, so keeping a spare set on hand is pretty straightforward.
