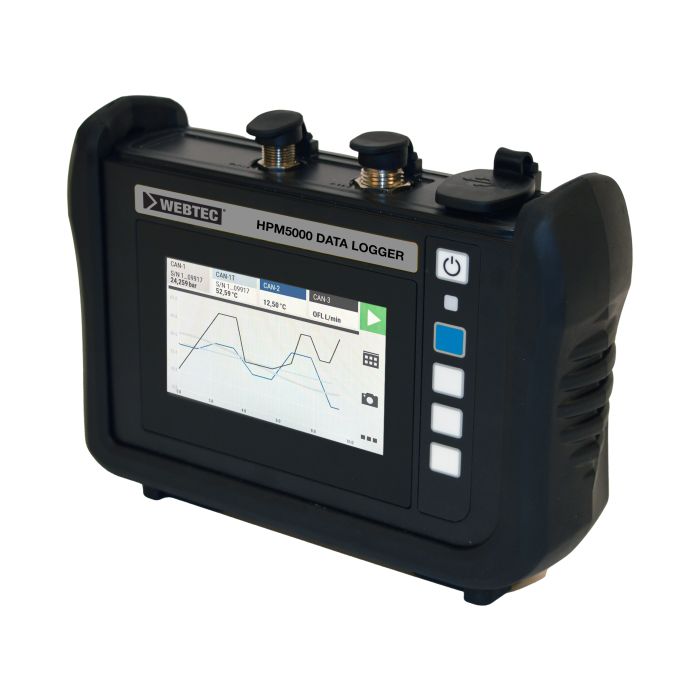

HPM5000 Series Hydraulic Data Logger HPM5140-CAN-A | FT11558-01

Ask A Question

Description & Features

The WEBTEC HPM5000 Series, specifically the HPM5140-CAN-A model, is a versatile hydraulic data logger designed for efficient data capturing across up to 14 channels. Its durable ABS/PC thermoplastic construction and IP65 rating ensure reliable performance in challenging conditions, with ambient temperatures ranging from -20 to 50 °C (-4 to 122 °F). The device features convenient USB-C and USB-A connections, along with an M12 5-Pin Code A interface for flexible connectivity. Powered by a 7.2V lithium-ion battery, it offers up to 5 hours of operation when used with six sensors.

Weighing just 0.85 kg (1.9 lbs) and with a gross weight of 1 kg (2.2 lbs), the HPM5000 is both portable and robust, making it ideal for field applications where mobility and reliability are crucial. Its compact design does not compromise on functionality, providing a practical solution for hydraulic pressure testing and data logging needs.

SKU: FT11558-01
Supplier Part Number (MPN): HPM5140-CAN-A

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
FT11558-01
Ambient Temperature
-20 to 50 °C, -4 to 122 °F
Battery Life
5 h with 6 sensors
Body Materials
ABS/PC (thermoplastic)
Connection Type
USB-C / USB-A + M12 5-Pin Code A
Gross Weight
1 kg, 2.2 lbs
IP Rating
IP65
Net Weight
0.85 kg, 1.9 lbs
Power Supply
Lithium-Ion Battery (7.2V)
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (1)

Question by: Rod P on Nov 8, 2025, 4:56 PM
how long does the battery last on this thing if I've got several sensors hooked up?
Answer by: Customer Support on Nov 9, 2025, 7:58 PM
Running six sensors, you'll get about five hours on a full charge. The HPM5140-CAN-A runs on a 7.2V lithium-ion battery, so no messing around with AA packs or external power bricks in the field. If you're running fewer sensors, that draw goes down, but five hours at six channels is the rated figure to plan around.
