HPM5000 Series Hydraulic Data Logger kit HPM5140-CAN-A-KIT | FT11559

Ask A Question

Description & Features

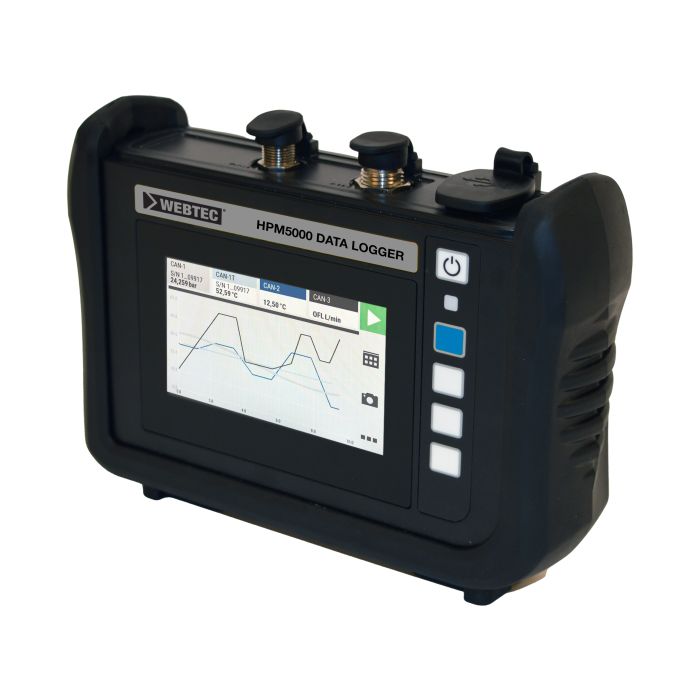

The HPM5140-CAN-A-KIT is a mid-range portable data logging kit from the WEBTEC HPM5000 Series, designed for multi-channel hydraulic system testing and diagnostics in the field. Supporting up to 14 sensor channels, it connects via USB-C, USB-A, and an M12 5-pin Code A connector, with CAN communication built in for integration with compatible sensor networks and vehicle systems.

Housed in a durable ABS/PC thermoplastic enclosure rated to IP65, the unit handles ambient temperatures from -20 to 50 °C (-4 to 122 °F), making it suitable for a wide range of industrial and mobile hydraulic environments. Power comes from an internal 7.2 V lithium-ion battery, delivering approximately five hours of runtime with six sensors connected. At 2.9 kg (6.4 lbs), the logger is compact enough for routine field service without sacrificing channel capacity.

SKU: FT11559
Supplier Part Number (MPN): HPM5140-CAN-A-KIT

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
FT11559
Ambient Temperature
-20 to 50 °C, -4 to 122 °F
Battery Life
5 h with 6 sensors
Body Materials
ABS/PC (thermoplastic)
Connection Type
USB-C / USB-A + M12 5-Pin Code A
Gross Weight
3 kg, 6.6 lbs
IP Rating
IP65
Net Weight
2.9 kg, 6.4 lbs
Power Supply
Lithium-Ion Battery (7.2V)
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (1)

Question by: Ray H on Apr 13, 2026, 8:36 PM
How many sensors can the HPM5140-CAN-A-KIT data logger handle at once?
Answer by: Customer Support on Apr 14, 2026, 9:17 PM
The HPM5140-CAN-A-KIT data logger is capable of handling up to 14 channels simultaneously, making it suitable for complex hydraulic systems where multiple data points need to be monitored.
