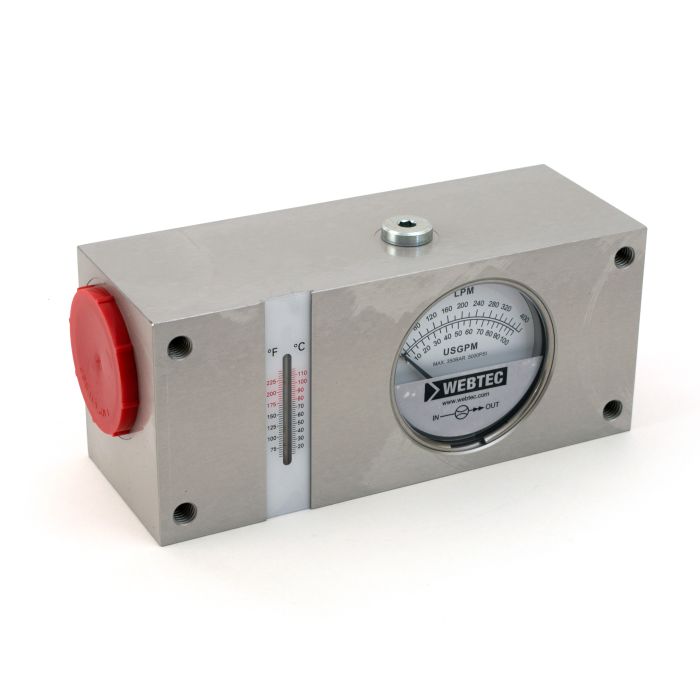

main product photo

FI1500 Series Hydraulic In-Line Flow Indicator FI1500-200ASOT | FT6068-04

Ask A Question

Description & Features

The WEBTEC FI1500 Series in-line flow indicator is designed for continuous monitoring of flow rates in hydraulic systems, covering a working range of 10 to 200 L/min (5 to 50 US gpm) with a flow accuracy of plus or minus 4% full scale. Rated to 350 bar (5000 psi), the unit is well suited to demanding industrial hydraulic circuits where pressure and temperature conditions are variable.

Fluid temperatures up to 80°C (176°F) are supported in continuous use, with short-term tolerance to 110°C (230°F), while ambient conditions between -10 and 50°C (14 to 122°F) are accommodated. Temperature readings are accurate to plus or minus 2.5°C (plus or minus 5°F). The aluminium 2011T6 body with mainly brass internals and FKM seals is compatible with mineral oils to ISO 11158. Main ports are sized at 1-7/8" -12UN #24 SAE ORB, with 1/4" NPTF top ports. Net weight is 3.2 kg (7 lbs).

SKU: FT6068-04
Supplier Part Number (MPN): FI1500-200ASOT

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
FT6068-04
Flow Accuracy
±4% Full Scale
Temperature Accuracy
±2.5°C / ±5°F
Ambient Temperature
-10 to 50°C, 14 to 122°F
Body Materials
Aluminium 2011T6
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Flow Range (US gpm)
5 - 50
Flow Range (L/min)
10 - 200
Fluid Temperature Range
20 to 80°C 65 to 176°F cont use. Intermittently (<10 mins) up to 110°C, 230°F
Gross Weight
3.2 kg, 7 lbs
Internal Materials
Mainly Brass
Maximum Rated Flow
200 L/min, 50 US gpm
Max Rated Pressure
350 bar, 5000 psi
Net Weight
3.2 kg, 7 lbs
Porting
Main ports 1-7/8” -12UN #24 SAE ORB, Top ports 1/4” NPTF
Seals
FKM
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Judy K on May 26, 2026, 10:12 PM
porting on this one, is it SAE ORB or something else? trying to figure out if it'll drop into an existing test circuit without swapping fittings
Answer by: Customer Support on May 28, 2026, 9:15 PM
Main ports are 1-7/8"-12UN #24 SAE ORB, so if your circuit is already plumbed with SAE ORB at that size you're in good shape. There are also 1/4" NPTF top ports. Worth double-checking your existing fittings against those specs before you order, but for most standard hydraulic test setups this is a pretty common port configuration.
Question by: Darryl K on Dec 7, 2025, 10:14 AM
How does the FI1500 Series measure flow accurately within its range?
Answer by: Customer Support on Dec 8, 2025, 7:40 PM
For inline flow checks, the FI1500 Series ensures accuracy within ±4% of Full Scale across its range of 10 to 200 L/min (5 to 50 US gpm). This makes it reliable for various hydraulic applications needing precise flow measurements.
