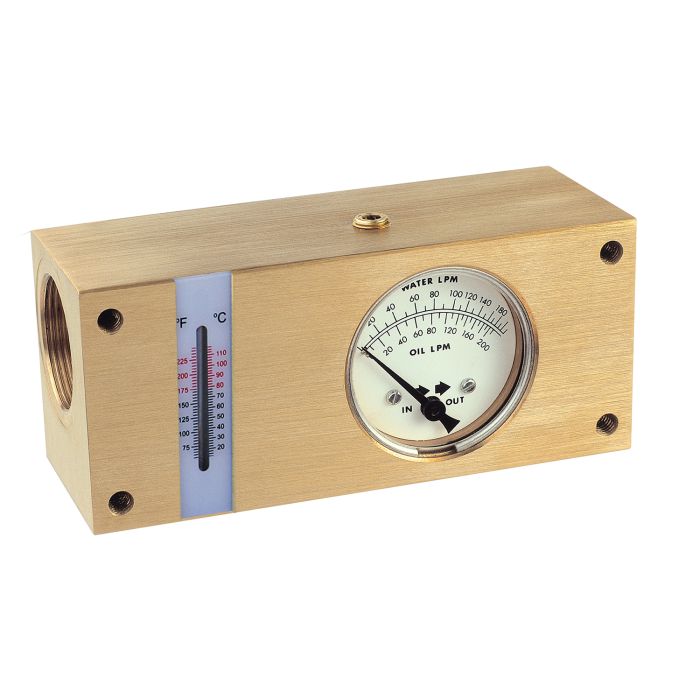

main product photo

FI1500 Series Hydraulic In-Line Flow Indicator FI1500-400BBWT | FT6068-14

Ask A Question

Description & Features

The FI1500 Series in-line flow indicator is designed for continuous flow and temperature monitoring in hydraulic circuits operating at pressures up to 350 bar (5000 psi). Covering a flow range of 20 to 400 L/min (5 to 100 US gpm), the WEBTEC FI1500-400BBWT delivers flow accuracy of ±4% full scale and temperature accuracy of ±2.5°C, making it suitable for demanding measurement tasks where reliable indication is essential.

Constructed with a brass CW614N body and primarily brass internals, the unit uses FKM seals and is compatible with water and mineral oils to ISO 11158. Main ports are 1-1/2" BSPP with 1/4" BSPP top ports. Fluid temperatures up to 80°C are supported in continuous service, with intermittent tolerance up to 110°C. Ambient temperature range spans -10 to 50°C. At 8.3 kg, the indicator is a robust choice for fixed installation in high-pressure hydraulic test and monitoring applications.

SKU: FT6068-14
Supplier Part Number (MPN): FI1500-400BBWT

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
FT6068-14
Flow Accuracy
±4% Full Scale
Temperature Accuracy
±2.5°C / ±5°F
Ambient Temperature
-10 to 50°C, 14 to 122°F
Body Materials
Brass CW614N
Compatible Fluid
Water & mineral oils to ISO 11158 (other fluids on request)
Flow Range (US gpm)
5 - 100
Flow Range (L/min)
20 - 400
Fluid Temperature Range
20 to 80°C 65 to 176°F cont use. Intermittently (<10 mins) up to 110°C, 230°F
Gross Weight
8.3 kg, 18 lbs
Internal Materials
Mainly Brass
Maximum Rated Flow
400 L/min, 100 US gpm
Max Rated Pressure
350 bar, 5000 psi
Net Weight
8.3 kg, 18 lbs
Porting
Main ports 1-1/2” BSPP, Top ports 1/4” BSPP
Seals
FKM
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (1)

Question by: Ray C on Mar 22, 2026, 8:48 AM
main ports are 1-1/2" BSPP on this thing -- we've got BSP fittings throughout the whole system so that works, but what about the top ports, are those a different size?
Answer by: Customer Support on Mar 24, 2026, 7:35 AM
The top ports are 1/4" BSPP, so yes, different from the main ports. Main flow connections are 1-1/2" BSPP and the top ports step down to 1/4" BSPP. If your system is already plumbed in BSP throughout, you're in good shape on both counts.
