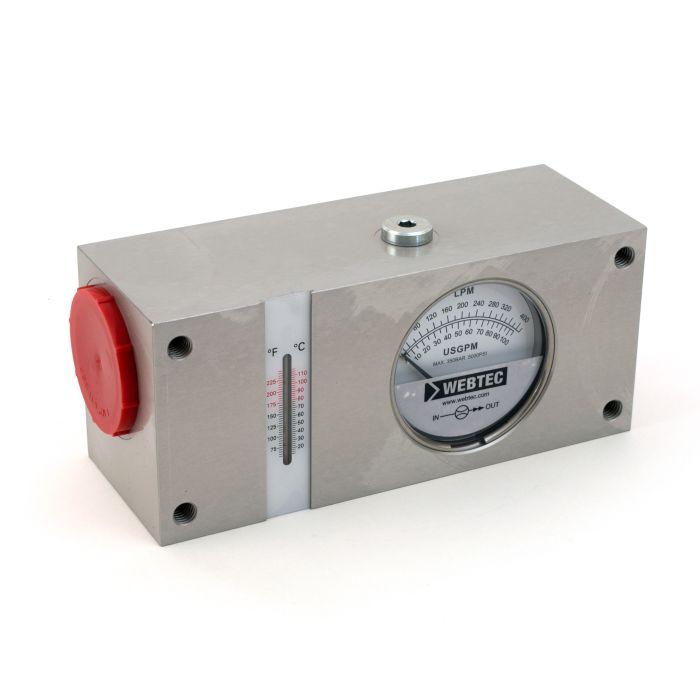

main product photo

FI1500 Series Hydraulic In-Line Flow Indicator FI1500-200ASO | FT6238-04

Ask A Question

Description & Features

The WEBTEC FI1500 Series in-line flow indicator is designed for continuous flow monitoring in hydraulic systems, covering a working range of 10 to 200 L/min (5 to 50 US gpm) with a flow accuracy of ±4% full scale. Rated to 350 bar (5000 psi), it suits demanding high-pressure circuits while remaining compact at 3.2 kg.

Fluid temperature capability extends from 20 to 80°C (65 to 176°F) during continuous use, with intermittent tolerance up to 110°C (230°F), and the unit operates across an ambient range of -10 to 50°C (14 to 122°F). The aluminium 2011T6 body uses mainly brass internals and FKM seals, and is compatible with mineral oils to ISO 11158. Main porting is 1-7/8"-12UN #24 SAE ORB, with 1/4" NPTF top ports. Temperature indication accuracy is ±2.5°C (±5°F).

SKU: FT6238-04
Supplier Part Number (MPN): FI1500-200ASO

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
FT6238-04
Flow Accuracy
±4% Full Scale
Temperature Accuracy
±2.5°C / ±5°F
Ambient Temperature
-10 to 50°C, 14 to 122°F
Body Materials
Aluminium 2011T6
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Flow Range (US gpm)
5 - 50
Flow Range (L/min)
10 - 200
Fluid Temperature Range
20 to 80°C 65 to 176°F cont use. Intermittently (<10 mins) up to 110°C, 230°F
Gross Weight
3.2 kg, 7 lbs
Internal Materials
Mainly Brass
Maximum Rated Flow
200 L/min, 50 US gpm
Max Rated Pressure
350 bar, 5000 psi
Net Weight
3.2 kg, 7 lbs
Porting
Main ports 1-7/8” -12UN #24 SAE ORB, Top ports 1/4” NPTF
Seals
FKM
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Stan J on Jul 18, 2025, 7:40 PM
porting on this unit, is it SAE ORB or something else? trying to figure out if it'll thread straight into my existing block without an adapter
Answer by: Customer Support on Jul 20, 2025, 12:33 PM
Main ports are 1-7/8" -12UN #24 SAE ORB, so if your manifold or block is already drilled and tapped for that SAE O-ring boss size, you're threading straight in. There are also 1/4" NPTF top ports if you need a pressure tap or gauge connection off the top. No adapters needed for a standard SAE ORB setup.
Question by: Warren K on May 28, 2026, 11:12 AM
Can the FI1500 Series Flow Indicator handle intermittent fluid temperatures above 80°C?
Answer by: Customer Support on May 30, 2026, 9:36 AM
Above 80°C, this flow indicator can handle temperatures intermittently up to 110°C, or 230°F, for less than 10 minutes, making it suitable for applications where brief temperature spikes occur.
