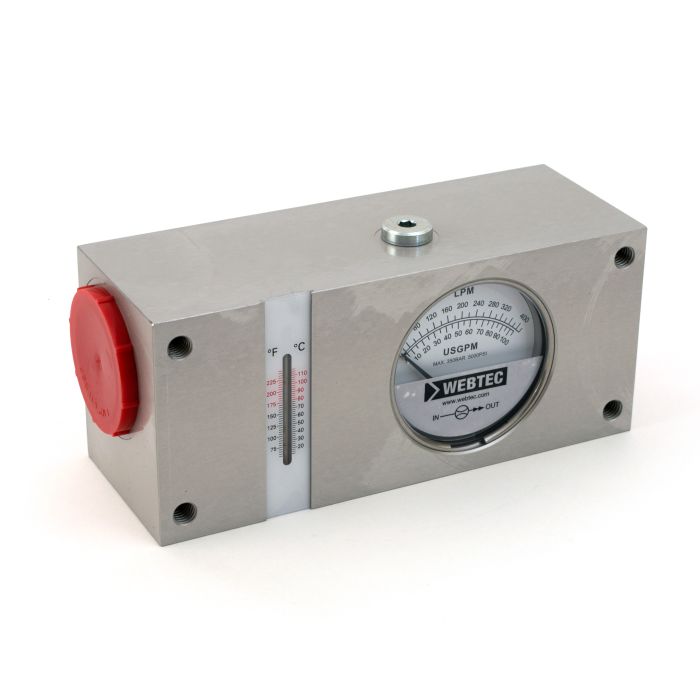

main product photo

FI1500 Series Hydraulic In-Line Flow Indicator FI1500-400ASO | FT6238-06

Ask A Question

Description & Features

The WEBTEC FI1500 Series in-line flow indicator is designed for continuous flow monitoring in hydraulic systems where both flow rate and fluid temperature need to be visible at a glance. Rated to 350 bar (5000 psi) and covering a flow range of 20 to 400 L/min (5 to 100 US gpm), model FI1500-400ASO delivers flow accuracy of plus or minus 4% full scale and temperature accuracy of plus or minus 2.5 degrees C (5 degrees F).

The aluminium 2011T6 body and predominantly brass internals are sealed with FKM seals, making the unit compatible with mineral oils to ISO 11158. Main porting is 1-7/8 inch -12UN #24 SAE ORB, with 1/4 inch NPTF top ports. Fluid temperatures up to 80 degrees C are supported in continuous service, with intermittent tolerance to 110 degrees C. Ambient service range spans -10 to 50 degrees C (14 to 122 degrees F). The unit weighs 3.2 kg (7 lbs).

SKU: FT6238-06
Supplier Part Number (MPN): FI1500-400ASO

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
FT6238-06
Flow Accuracy
±4% Full Scale
Temperature Accuracy
±2.5°C / ±5°F
Ambient Temperature
-10 to 50°C, 14 to 122°F
Body Materials
Aluminium 2011T6
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Flow Range (US gpm)
5 - 100
Flow Range (L/min)
20 - 400
Fluid Temperature Range
20 to 80°C 65 to 176°F cont use. Intermittently (<10 mins) up to 110°C, 230°F
Gross Weight
3.2 kg, 7 lbs
Internal Materials
Mainly Brass
Maximum Rated Flow
400 L/min, 100 US gpm
Max Rated Pressure
350 bar, 5000 psi
Net Weight
3.2 kg, 7 lbs
Porting
Main ports 1-7/8” -12UN #24 SAE ORB, Top ports 1/4” NPTF
Seals
FKM
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (1)

Question by: Kirk D on Apr 5, 2026, 10:40 AM
porting on this one, is it SAE ORB or something else? got a #24 fitting on the manifold and want to make sure it drops right in
Answer by: Customer Support on Apr 6, 2026, 3:52 PM
Main ports are 1-7/8"-12UN #24 SAE ORB, so that lines up directly with a #24 SAE ORB fitting on your manifold. There are also 1/4" NPTF ports on top if you need accessory connections. No adapters needed on the main line as long as your manifold matches that thread spec.
