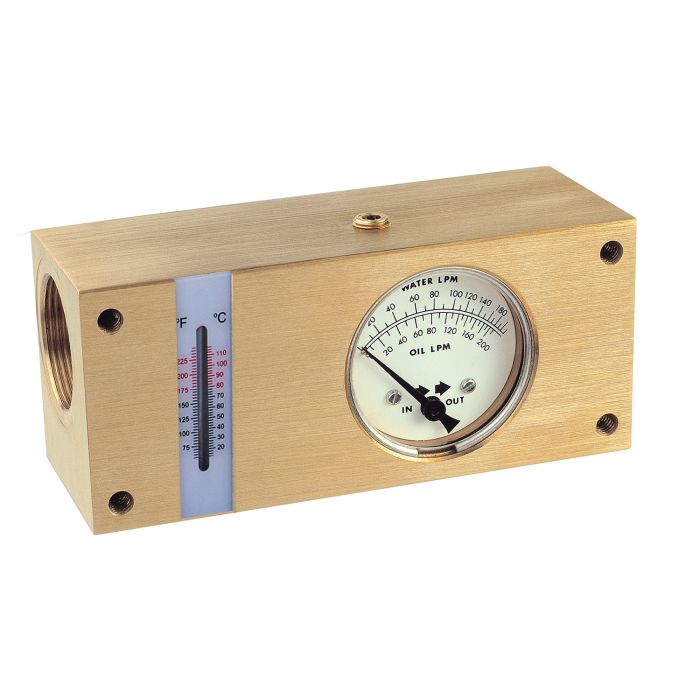

FI1500 Series Hydraulic In-Line Flow Indicator FI1500-400BSW | FT6238-18

Ask A Question

Description & Features

The WEBTEC FI1500 Series in-line flow indicator is designed for continuous flow and temperature monitoring in hydraulic systems handling mineral oils or water. Rated to 350 bar (5000 psi) with a working flow range of 20 to 400 L/min (5 to 100 US gpm), the FI1500-400BSW delivers flow accuracy of ±4% Full Scale and temperature accuracy of ±2.5°C, making it suitable for demanding mobile and industrial hydraulic circuits.

Fluid temperatures up to 80°C are supported in continuous service, with short-term tolerance to 110°C. Connections are made via 1-7/8" -12UN #24 SAE ORB main ports, with 1/4" NPTF top ports. The brass CW614N body with FKM seals provides good compatibility across a range of hydraulic fluids, and the unit weighs 8.3 kg, reflecting its robust construction for high-pressure in-line service.

SKU: FT6238-18
Supplier Part Number (MPN): FI1500-400BSW

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
FT6238-18
Flow Accuracy
±4% Full Scale
Temperature Accuracy
±2.5°C / ±5°F
Ambient Temperature
-10 to 50°C, 14 to 122°F
Body Materials
Brass CW614N
Compatible Fluid
Water & mineral oils to ISO 11158 (other fluids on request)
Flow Range (US gpm)
5 - 100
Flow Range (L/min)
20 - 400
Fluid Temperature Range
20 to 80°C 65 to 176°F cont use. Intermittently (<10 mins) up to 110°C, 230°F
Gross Weight
8.3 kg, 18 lbs
Internal Materials
Mainly Brass
Maximum Rated Flow
400 L/min, 100 US gpm
Max Rated Pressure
350 bar, 5000 psi
Net Weight
8.3 kg, 18 lbs
Porting
Main ports 1-7/8” -12UN #24 SAE ORB, Top ports 1/4” NPTF
Seals
FKM
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (1)

Question by: Dustin W on Jun 4, 2026, 2:24 PM
How well does the FI1500 Series handle high-pressure situations in hydraulic systems?
Answer by: Customer Support on Jun 6, 2026, 8:17 AM
The FI1500 Series is built to manage pressures up to 350 bar (5000 psi), making it a reliable choice for standard hydraulic systems. It's designed to provide accurate flow readings without compromising its structural integrity under high pressure.
