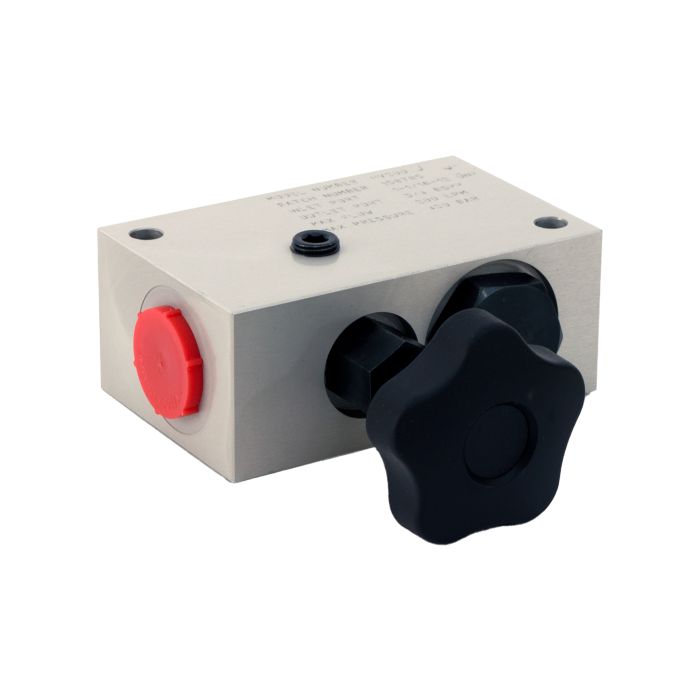

main product photo

HV Series Loading Valve HV400-S-N-6 | FT6816-6

Ask A Question

Description & Features

The WEBTEC HV Series Loading Valve, model HV400-S-N-6, offers precise and smooth pressure control in both directions, making it an optimal choice for demanding hydraulic systems. With a maximum flow capacity of 400 liters per minute (100 US gallons per minute) and a pressure rating of up to 420 bar (6000 psi), this valve is designed to handle rigorous industrial applications. It operates efficiently within a fluid temperature range of 0 to 120 °C (32 to 248 °F) and an ambient temperature range of 5 to 40 °C (59 to 104 °F).

Constructed with a robust aluminum body and durable steel internals, the HV400-S-N-6 is equipped with FKM seals to ensure reliability and longevity. Compatible with mineral oils to ISO 11158, and adaptable for other fluids upon request, this valve meets diverse operational needs. The 1-5/16" -12UN #16 SAE ORB porting ensures easy integration into existing hydraulic systems. Weighing in at 1.9 kg (4.1 lbs), this valve combines lightweight design with high performance.

SKU: FT6816-6
Supplier Part Number (MPN): HV400-S-N-6

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Ambient Temperature
5 to 40 °C, 59 to 104 °F
Body Materials
Aluminium
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Flow Range (US gpm)
100
Flow Range (L/min)
400
Fluid Temperature Range
0 to 120 °C, 32 to 248 °F
Gross Weight
2 kg, 4.4 lbs
Internal Materials
Steel
Maximum Rated Flow
400 L/min, 100 US gpm
Max Rated Pressure
420 bar, 6000 psi
Net Weight
1.9 kg, 4.1 lbs
Porting
1-5/16” -12UN #16 SAE ORB
Seals
FKM
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Randy H on May 9, 2026, 10:58 PM
what's the max pressure this HV400-S-N-6 is rated for? running a test circuit that needs to hold 5500 psi and want to make sure it won't be a problem
Answer by: Customer Support on May 11, 2026, 7:43 PM
Rated to 420 bar, which works out to 6000 psi, so 5500 psi puts you comfortably inside the limit. The body is aluminum with steel internals and FKM seals, so it's built to hold up at those pressures without issue under normal mineral oil service.
Question by: Diane W on Jan 11, 2026, 7:36 AM
How much pressure can the HV400-S-N-6 handle?
Answer by: Customer Support on Jan 12, 2026, 6:09 PM
The HV400-S-N-6 is built to withstand a maximum pressure of 420 bar, which is equivalent to 6000 psi.
