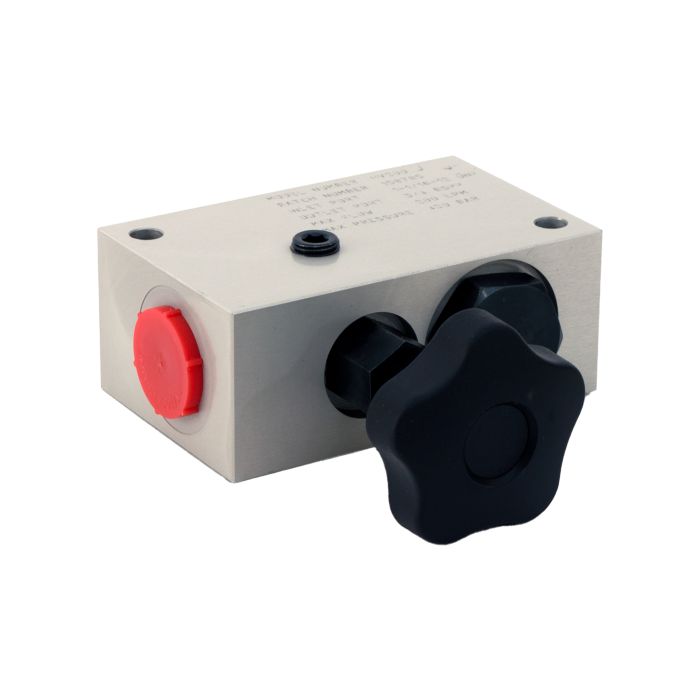

main product photo

HV Series Loading Valve HV200-S-N-6 | FT9247-12

Ask A Question

Description & Features

The WEBTEC HV Series Loading Valve, model HV200-S-N-6, is a robust solution designed to deliver smooth and precise pressure control in both directions. With a maximum flow capacity of 200 L/min (50 US gpm) and a maximum pressure of 420 bar (6000 psi), this valve is well-suited for high-demand hydraulic systems. It operates efficiently within a fluid temperature range of 0 to 120 °C (32 to 248 °F) and ambient conditions from 5 to 40 °C (59 to 104 °F). Compatible with mineral oils to ISO 11158, this valve supports versatility in hydraulic applications.

Constructed from durable aluminium with steel internals and FKM seals, the HV200-S-N-6 offers reliability and longevity. The valve features a 1-1/16" -12UN #12 SAE ORB porting, making it adaptable to various system configurations. Weighing only 1.4 kg (3.1 lbs) net, it provides a lightweight yet sturdy solution for hydraulic systems.

SKU: FT9247-12
Supplier Part Number (MPN): HV200-S-N-6

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
FT9247-12
Ambient Temperature
5 to 40 °C, 59 to 104 °F
Body Materials
Aluminium
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Flow Range (US gpm)
50
Flow Range (L/min)
200
Fluid Temperature Range
0 to 120 °C, 32 to 248 °F
Gross Weight
1.6 kg, 3.5 lbs
Internal Materials
Steel
Maximum Rated Flow
200 L/min, 50 US gpm
Max Rated Pressure
420 bar, 6000 psi
Net Weight
1.4 kg, 3.1 lbs
Porting
1-1/16” -12UN #12 SAE ORB
Seals
FKM
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (1)

Question by: Earl M on Mar 21, 2026, 4:15 PM
what's the max pressure this thing is rated for? trying to figure out if it'll hold up on a high-pressure test circuit we're running
Answer by: Customer Support on Mar 23, 2026, 10:22 AM
Rated to 420 bar (6000 psi), so it handles most high-pressure hydraulic test setups without issue. The body is aluminum with steel internals, which keeps it sturdy without adding a lot of bulk. At 1.4 kg it's not a heavy unit either, so mounting it into a circuit isn't a chore.
