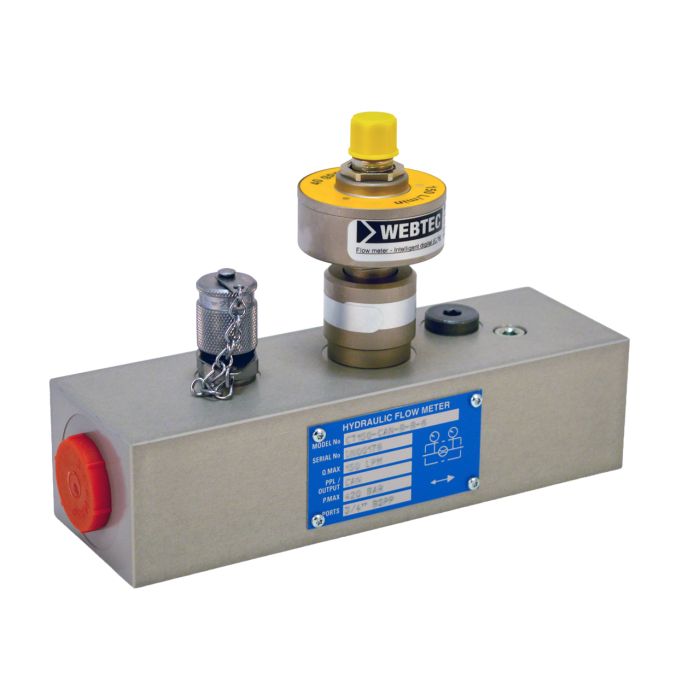

CT Series Turbine Flow Meters with Conditioned Output CT150-CAN-S-S-6 | FT9502-25

Description & Features

The CT Series Turbine Flow Meters with Conditioned Output by WEBTEC are designed for precise and reliable flow measurement in hydraulic systems. This model, CT150-CAN-S-S-6, accommodates a flow range from 5 to 150 L/min (1.3 to 40 US gpm) and withstands pressures up to 420 bar (6000 psi). Its flow accuracy of ±1% full scale ensures dependable performance across various applications. With an IP66 rating, it is protected against dust and powerful water jets, making it suitable for demanding environments.

Constructed from durable materials such as aluminium, steel, and stainless steel, the CT Series ensures longevity and robustness. The flow meter's compatibility with mineral oils to ISO 11158 and options for other fluids on request add to its versatility. The unit features an M12 5-Pin electrical connection and operates within a power supply range of 12 – 32 V DC. Seals are available in FKM or EPDM, catering to different fluid types and conditions. Its compact design and reliable performance make it an ideal choice for industrial hydraulic applications.

SKU: FT9502-25
Supplier Part Number (MPN): CT150-CAN-S-S-6

Specifications

Brand WEBTEC	Brand Webtec	Pack Size 1.00	UOM EA	Supplier Part Number FT9502-25	Flow Accuracy ±1% Full Scale	Temperature Accuracy ±2°C / ±4°F	Ambient Temperature 5 to 40°C, 41 to 104°F	Body Materials Aluminium	Compatible Fluid Mineral oils to ISO 11158 (other fluids on request)	Connection Type M12 5-Pin	Flow Range (US gpm) 1.3 - 40	Flow Range (L/min) 5 - 150	Fluid Temperature Range 5 to 90°C, 41 to 194°F	Gross Weight 4 kg, 4.4 lbs	Internal Materials Aluminium, Steel, Stainless Steel	IP Rating IP66	Maximum Rated Flow 150 L/min, 40 US gpm	Max Rated Pressure 420 bar, 6000 psi	Net Weight 1.6 kg, 3.5 lbs	Porting Main 1-1/16” -12UN #12 SAE ORB. Top 7/16” -20UN #4 SAE ORB	Power Supply 12 – 32 V DC	Seals FKM / EPDM	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Bruce P on Jul 22, 2025, 8:11 AM

flow range on this one goes down to 5 L/min, is that low end reliable or does accuracy start slipping below maybe 20 or 30?

Answer by: Customer Support on Jul 24, 2025, 7:30 AM

Rated accuracy is ±1% of full scale across the entire stated range of 5 to 150 L/min. That figure holds at the low end too, so you're not looking at a degraded spec just because you're running light flow. Full scale on this meter is 150 L/min, so ±1% works out to roughly ±1.5 L/min regardless of where in the range you're operating. For most hydraulic test and monitoring applications, that's a solid number even at the bottom of the range.
