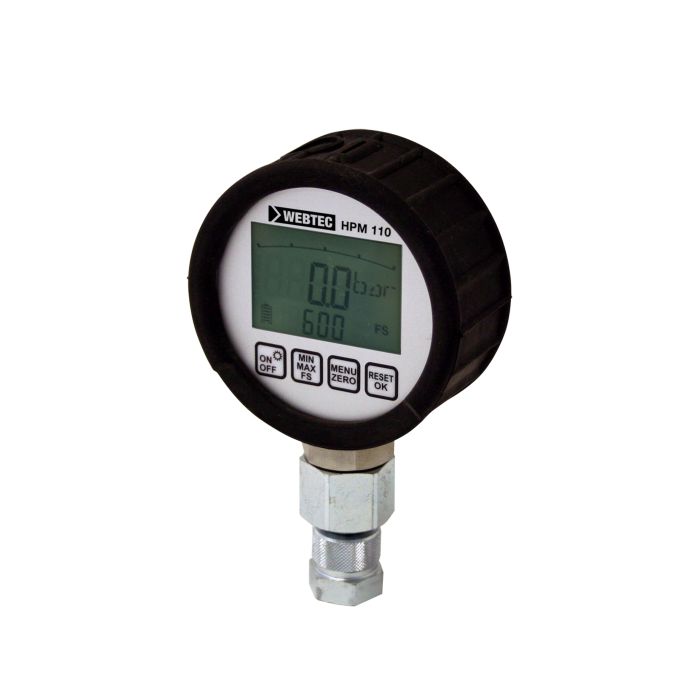

main product photo

HPM110 Series Digital Pressure Gauge SR-HPM-110-UN-1500 | FT9985-1K5

Ask A Question

Description & Features

The WEBTEC HPM110 Series Digital Pressure Gauge, model SR-HPM-110-UN-1500, is engineered for accurate pressure measurement in hydraulic systems. With a maximum pressure capacity of 100 bar (1450 psi) and an accuracy of ±0.5% full scale, it ensures reliable performance for critical applications. The gauge is compatible with both oil and water, and can operate within a fluid temperature range of -20 to 80 °C (4 to 176 °F) and an ambient temperature range of -10 to 50 °C (14 to 144 °F), making it versatile for various environments.

Designed with a durable zinc die-cast body and TPE rubber protection cover, the gauge is equipped with a 7/16" -20UN #4 SAE ORB male port. It is powered by two 1.5V AA batteries, providing a battery life of 1500 hours, and boasts an IP65 rating for dust and water protection. Internal components made of stainless steel and NBR seals contribute to its robustness and longevity.

SKU: FT9985-1K5
Supplier Part Number (MPN): SR-HPM-110-UN-1500

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
FT9985-1K5
Pressure Accuracy
±0.5% Full Scale
Ambient Temperature
-10 to 50 °C, 14 to 144 °F
Battery Life
1500h
Body Materials
Zinc die casting with TPE rubber protection cover
Compatible Fluid
Oil / Water (other fluids on request)
Connection Type
7/16" -20UN #4 SAE ORB Male
Fluid Temperature Range
-20 to 80 °C, 4 to 176 °F
Gross Weight
0.5 kg, 1.1 lbs
Internal Materials
Stainless Steel
IP Rating
IP65
Max Rated Pressure
100 bar, 1450 psi
Net Weight
0.5 kg, 1.1 lbs
Porting
7/16" -20UN #4 SAE ORB Male
Power Supply
2 x AA Battery (1.5V)
Seals
NBR
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (1)

Question by: Harold F on Sep 27, 2025, 11:00 AM
How does the HPM110 Series gauge hold up in different temperatures?
Answer by: Customer Support on Sep 29, 2025, 9:49 AM
This gauge is built to perform within a fluid temperature range of -20 to 80°C (4 to 176°F) and an ambient temperature between -10 and 50°C (14 to 144°F), making it versatile for various environments.
