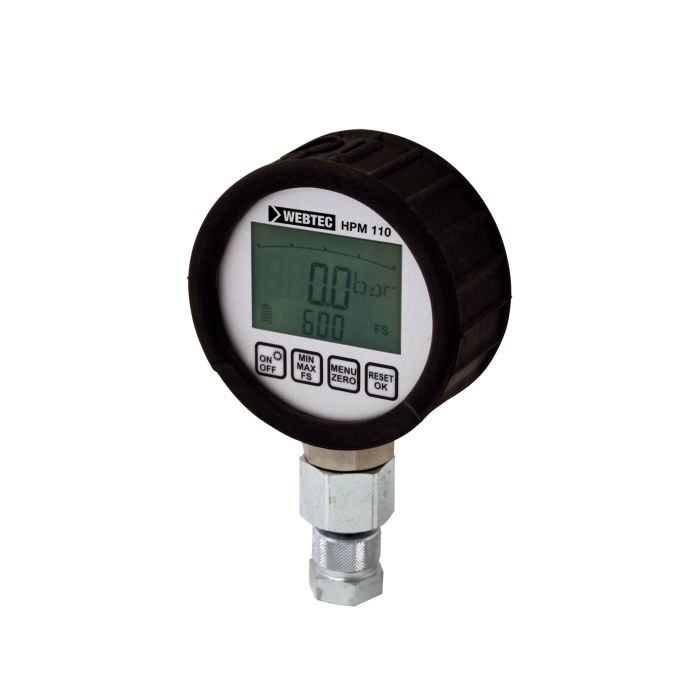

HPM110 Series Digital Pressure Gauge SR-HPM-110-UN-250 | FT9985-250

Ask A Question

Description & Features

The WEBTEC HPM110 Series Digital Pressure Gauge is designed for accurate monitoring of oil and water pressure in industrial applications. With a maximum pressure capacity of 16 bar (230 psi) and a precision of ±0.5% full scale, it ensures reliable readings under demanding conditions. The gauge operates efficiently in fluid temperatures ranging from -20 to 80 °C (4 to 176 °F) and ambient temperatures between -10 to 50 °C (14 to 144 °F). Its sturdy construction includes a zinc die-cast body with a TPE rubber protection cover, offering durability and an IP67 rating for protection against dust and water ingress.

The device features a 1/4" BSPP female porting and M16 x 2 electrical connection, powered by two AA batteries providing up to 1500 hours of operation. The internal components are crafted from stainless steel with NBR seals, ensuring compatibility with various industrial fluids. Lightweight at 0.5 kg (1.1 lbs), the HPM110 Series is an excellent choice for precise pressure monitoring in hydraulic systems.

SKU: FT9985-250
Supplier Part Number (MPN): SR-HPM-110-UN-250

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
FT9985-250
Pressure Accuracy
±0.5% Full Scale
Ambient Temperature
-10 to 50 °C, 14 to 144 °F
Battery Life
1500h
Body Materials
Zinc die casting with TPE rubber protection cover
Compatible Fluid
Oil / Water (other fluids on request)
Connection Type
M16 x 2 Female
Fluid Temperature Range
-20 to 80 °C, 4 to 176 °F
Gross Weight
0.5 kg, 1.1 lbs
Internal Materials
Stainless Steel
IP Rating
IP67
Max Rated Pressure
16 bar, 230 psi
Net Weight
0.5 kg, 1.1 lbs
Porting
1/4" BSPP female
Power Supply
2 x AA Battery (1.5V)
Seals
NBR
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Todd W on Nov 20, 2025, 7:36 PM
How do I know if the HPM110 pressure gauge will fit my existing setup?
Answer by: Customer Support on Nov 22, 2025, 7:24 AM
The HPM110 features a 1/4" BSPP female porting, which is commonly used in hydraulic systems. If your setup uses this port size, it should be a straightforward fit. Just double-check your existing connections to be sure.
Question by: Janice B on Nov 11, 2025, 8:43 AM
gauge says it runs on AA batteries, how long before I'm swapping those out on a busy machine?
Answer by: Customer Support on Nov 13, 2025, 7:36 AM
Rated battery life is 1,500 hours on two standard 1.5V AA cells. On a machine running a single shift, that works out to well over a year between changes. Higher-duty applications will burn through them faster, but 1,500 hours is the published figure under normal conditions.
