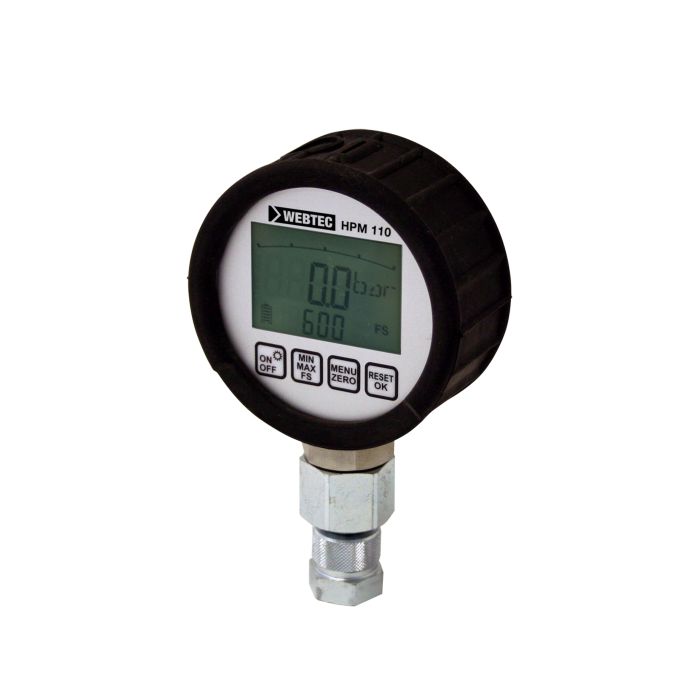

main product photo

HPM110 Series Digital Pressure Gauge SR-HPM-110-MT-600 | FT9985-600

Ask A Question

Description & Features

Designed for monitoring oil pressure in hydraulic equipment, the WEBTEC HPM110 Series gauge handles a maximum pressure of 600 bar (8700 psi) with a measurement accuracy of ±0.5% full scale, making it a reliable choice for demanding field and workshop use. Fluid temperatures from -20 to 80 °C (-4 to 176 °F) and an ambient operating range of -10 to 50 °C (14 to 122 °F) cover the majority of standard hydraulic service conditions.

Connection is via a 1/4" BSPP female port, with an M16 x 2 female electrical connection and power supplied by two AA batteries rated for up to 1500 hours of service. The IP65-rated enclosure combines a zinc die-cast body with a TPE rubber protection cover, while internal components are stainless steel with NBR seals. Compatible with oil and water-based fluids, the unit weighs 0.5 kg (1.1 lbs).

SKU: FT9985-600
Supplier Part Number (MPN): SR-HPM-110-MT-600

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
FT9985-600
Pressure Accuracy
±0.5% Full Scale
Ambient Temperature
-10 to 50 °C, 14 to 144 °F
Battery Life
1500h
Body Materials
Zinc die casting with TPE rubber protection cover
Compatible Fluid
Oil / Water (other fluids on request)
Connection Type
M16 x 2 Female
Fluid Temperature Range
-20 to 80 °C, 4 to 176 °F
Gross Weight
0.5 kg, 1.1 lbs
Internal Materials
Stainless Steel
IP Rating
IP65
Max Rated Pressure
600 bar, 8700 psi
Net Weight
0.5 kg, 1.1 lbs
Porting
1/4" BSPP female
Power Supply
2 x AA Battery (1.5V)
Seals
NBR
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Shawn C on Apr 26, 2026, 7:43 AM
what kind of porting does this gauge use, and is it a standard thread you'd find on most hydraulic test points?
Answer by: Customer Support on Apr 28, 2026, 7:35 AM
Fluid connection is 1/4" BSPP female, which is a common thread type on hydraulic test equipment and many European-style fittings. If your system runs NPT ports, you'd need an adapter since BSPP and NPT are not interchangeable without one. The electrical side uses an M16 x 2 female connector, so keep that in mind when sourcing a mating cable.
Question by: Judy P on Sep 15, 2025, 6:17 PM
How does the HPM110 Series Digital Pressure Gauge handle different fluid temperatures?
Answer by: Customer Support on Sep 17, 2025, 9:52 AM
The HPM110 Series Digital Pressure Gauge can manage fluid temperatures ranging from -20 to 80 °C, which is equivalent to 4 to 176 °F. This makes it suitable for various hydraulic applications where temperature variations are common.
