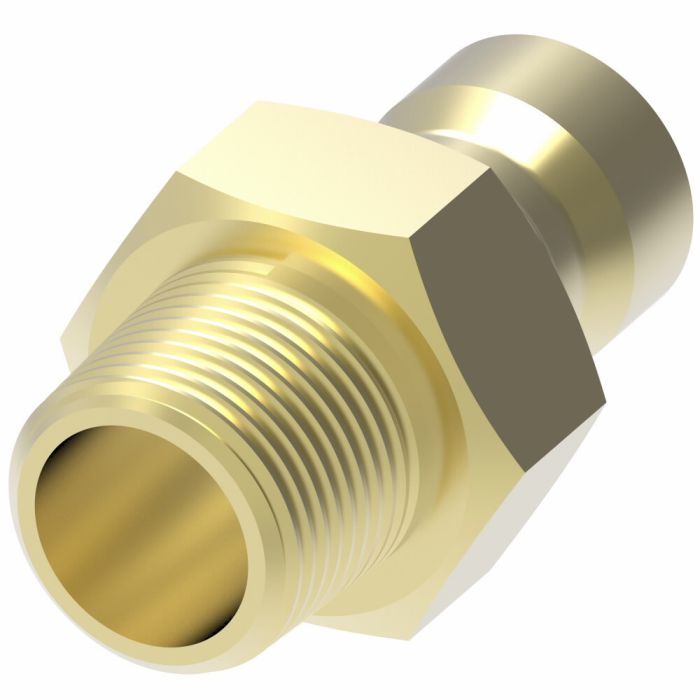

The CPLING FLO TEMP Series Male Brass fitting, also known as a quick disconnect plug, is part of the Eaton Hansen Flo-Temp Series. This male half component features a ball lock internal connection type for quick connect and disconnect functionality, eliminating the need for special tools.
Constructed from brass with Buna-N seals, this fitting is suitable for applications such as injection molding and heating and cooling systems. It has a 1/2 inch port size, 0.5 inch End Size 2 and a flow rate of 4.5 gallons per minute and exceeds ISO 16028 operating pressures. It can withstand minimum working temperatures as low as -40 degrees.
SKU: FTP354
Supplier Part Number (MPN): FTP354
|
Alternate Part Numbers
MINO-00015X13380
|
Application
Injection Molding, Heating and Cooling
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13556
|
End Size 2
0.50
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
4.5 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
1/2
|
Product Material
Brass
|
Product Width
0.98
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
FTP354
|
Valve Type
Straight Thru
|
Product Weight
0.07 lbs
|
