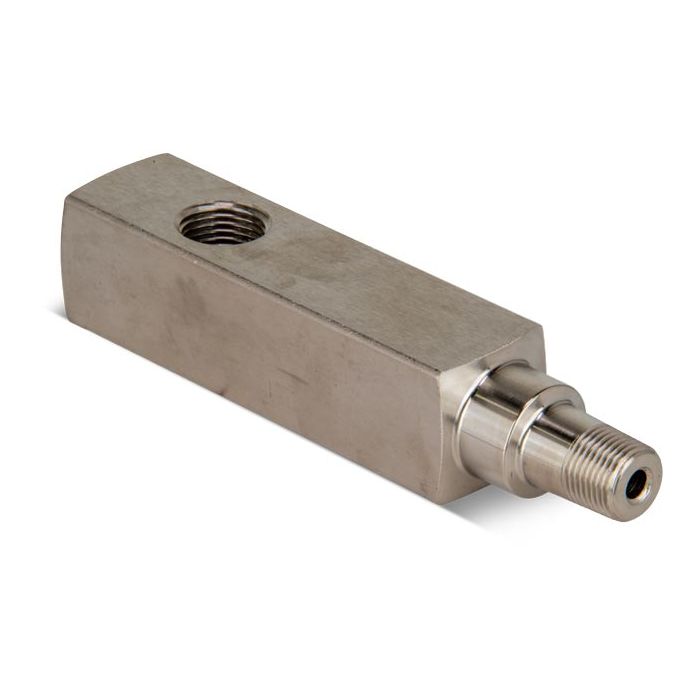

main product photo

Enerpac | Gauge Adaptor, 1/2 in. NPT Gauge Port, 10,000 psi | GA2

Ask A Question

Description & Features

Rated to 10,000 psi (700 bar), the Enerpac Gauge Adaptor, 1/2 in. NPT Gauge Port, 10,000 psi is designed to simplify pressure gauge integration into hydraulic circuits. The male end threads directly into a pump or cylinder port, the female end accepts a hose or coupler, and a third port provides the gauge connection, allowing inline pressure monitoring without interrupting the flow path.

Part of the Enerpac GA Series, this adaptor is a practical solution for applications where direct gauge mounting is not feasible or where reading angles need to be adjusted for accessibility. The 1/2 in. NPT gauge port provides a standard connection compatible with a wide range of pressure gauges used in high-pressure hydraulic service.

SKU: GA-2

Supplier Part Number (MPN): GA2

Alternate Part Numbers: C1CX31

Specifications

Brand
Enerpac
Pack Size
1.00
UOM
EA
Max Operating Pressure
10,000 psi (700 bar)
Product Type
GaugeAccessory
Series
GA
Subtype
Gauge Adaptor
Supplier Part Number
GA2
Product Weight
1.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Phil S on Mar 12, 2026, 4:52 PM
Male end goes into the pump port and the female takes the hose or coupler -- just want to make sure I got that right before I go wrenching on it. What size thread are we talking on both ends?
Answer by: Customer Support on Mar 14, 2026, 7:58 AM
Both ends are 1/2 in. NPT. The male end threads into your pump or cylinder port, and the female end accepts your hose or coupler. The third port on the adaptor is where your pressure gauge connects. Pretty straightforward to set up once you have the right gauge and fittings on hand.
Question by: Carl G on Mar 31, 2026, 7:03 AM
Trying to add a pressure gauge without re-hydraulic connections the whole setup, is that what this GA-2 adaptor is for?
Answer by: Customer Support on Apr 1, 2026, 8:06 AM
For adding a gauge right at a pump or cylinder port, this adaptor gives you a dedicated gauge connection while still letting you hook up a hose or coupler on the female end. The male end threads into the port, so you can mount the gauge where it is easy to see.
