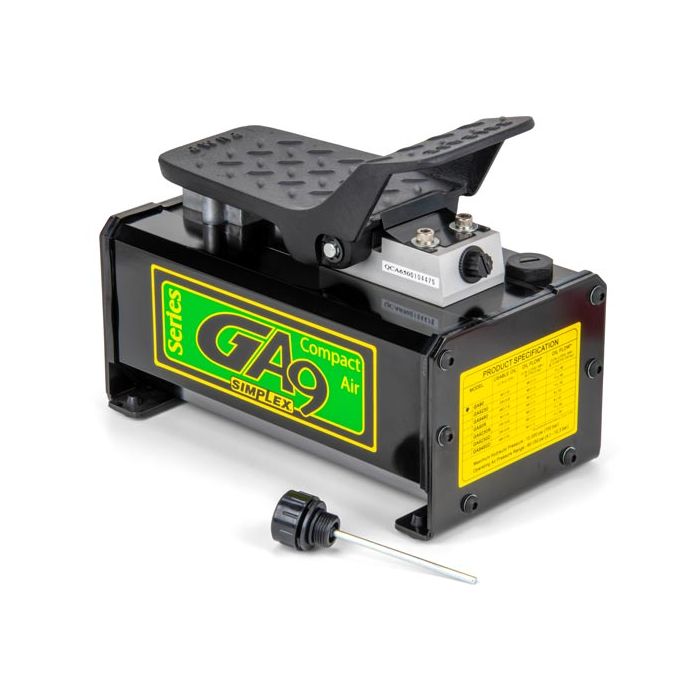

Simplex | Air Over Hydraulic Compact Foot Pump, Foot Pedal Control, 11 in3/min (180 cm3/min) Oil Flow at 10,000 psi (700 bar), 90 in3 (1474,8 cm3) Usable Oil Capacity, For use with Single-Acting Tools | GA90

Designed for pressing, production, and shop tool applications, this air-over-hydraulic compact foot pump delivers hands-free control with consistent output at up to 10,000 psi (700 bar). A three-position treadle with non-slip diamond plate texture allows safe advance, hold, and retract operation, and the pedal can be locked in the release position to reduce operator strain during extended use.

The Simplex GA-90 operates on 10 CFM at 60–150 psi (4.13–10.34 bar) inlet air and produces an oil flow rate of 11 in³/min (180 cm³/min) at rated pressure, with a usable oil capacity of 90 in³ (1,474.8 cm³). Compatible with single-acting tools, it features all-metal construction, rubber gasket seals, and an integrated non-spill vent with oil level indicator. Four non-skid rubber feet allow stationary mounting, and noise output is rated at 85 dBA at full pressure, suitable for in-house production environments. At 18.5 lbs (8.4 kg), it is portable without sacrificing durability.

SKU: GA-90

Supplier Part Number (MPN): GA90
