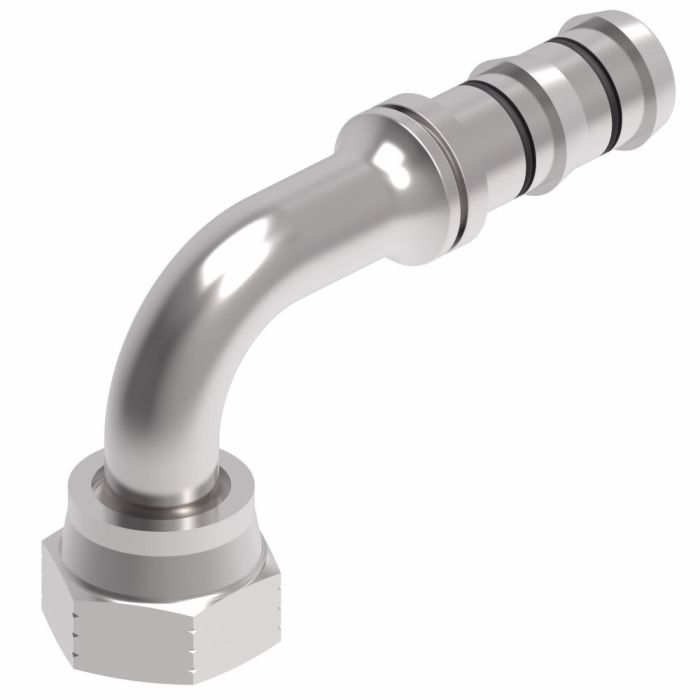

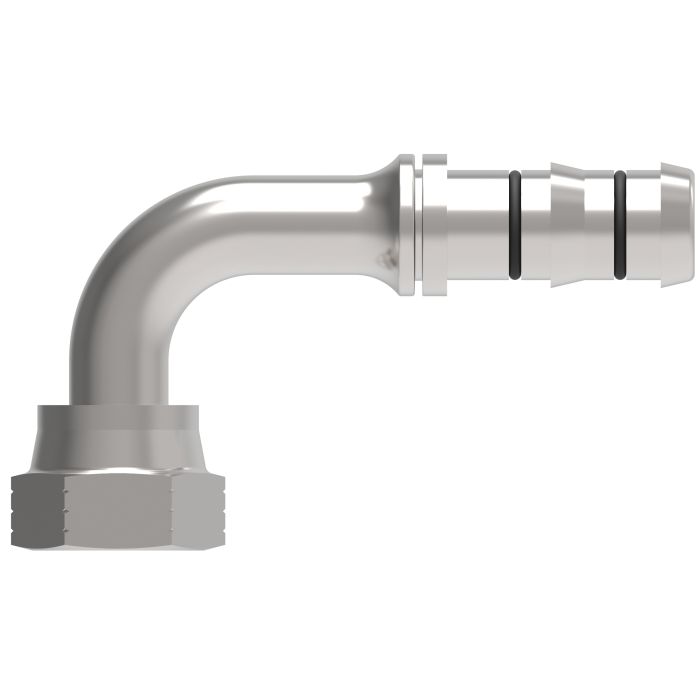

AEROQUIP ADAPTER

Ask A Question

Description & Features

Designed for A/C refrigeration and fluid transfer applications, this carbon steel nipple assembly from Aeroquip connects a 9/16 in. ORS female swivel end to a 1/4 in. male line/hose/tube end in a 90-degree elbow configuration. The -4 hose dash size and compact 0.82 in. drop dimension make it well-suited for installations where space and routing angles are critical factors.

As part of the Danfoss/Eaton E-Z Clip system, the Aeroquip Adapter is built to fit a wide range of industrial applications while supporting reduced assembly times in production environments. Carbon steel construction provides reliable durability across standard refrigerant and hydraulic fluid service conditions.

SKU: GA23913-4-4

Supplier Part Number (MPN): GA23913-4-4

Alternate Part Numbers: C1JA93

Specifications

a Dimensions
2.04 in
Compatible Hose ID
1/4 in
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Female ORFS Swivel
Connection Type 2
Hose
Construction Style
Reusable
Cut-Off Factor
1.37 in
Dimensions
2.37 in L x 0.669 in W x 0.97 in H
Drop Dimensions
0.82 in
End Gender 1
Female
End Gender 2
Male
End Size 1
9/16 in
End Size 2
1/4 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
GH134 Series Hoses
Hex Size
0.67 in
Hose Dash Size
04
Inside Diameter
0.12 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Thread Sealant
Without Thread Sealant
Thread Type
UNF

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Joyce H on May 13, 2025, 5:36 PM
Can this fitting handle standard refrigerants used in automotive A/C systems?
Answer by: Customer Support on May 15, 2025, 7:57 AM
This Aeroquip adapter is made from carbon steel, which offers reliable durability across standard refrigerant service conditions, so it should work fine for automotive A/C applications.
