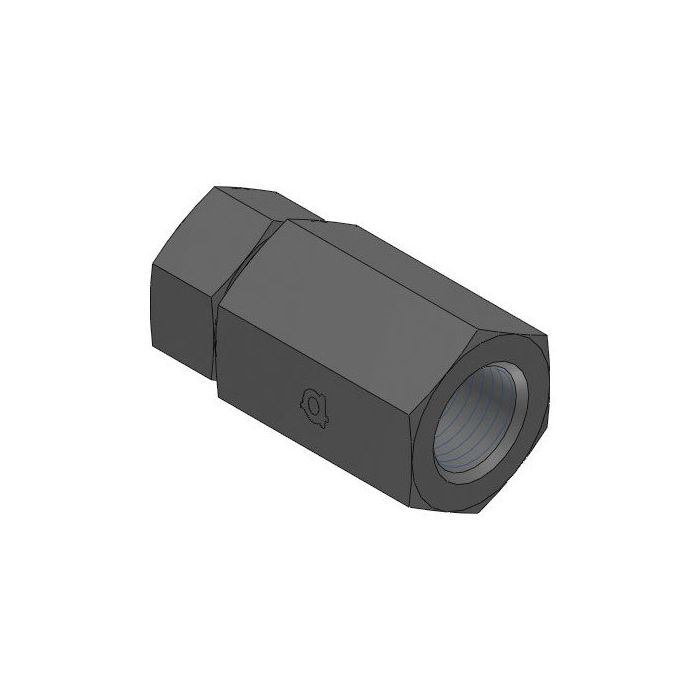

main product photo

Gauge Cplg Fbspp-Fem Soft Seal

Ask A Question

Description & Features

Designed for precision in hydraulic applications, the Gauge Coupling offers reliable connectivity with its straight design and soft seal technology. It features a female BSPP (British Standard Pipe Parallel) connection on side 2, rated at G 1/4 - 19, ensuring compatibility with various industrial systems. On side 1, the coupling accommodates an M12 x 1.5 DIN tube connection, also female, providing versatile installation options.

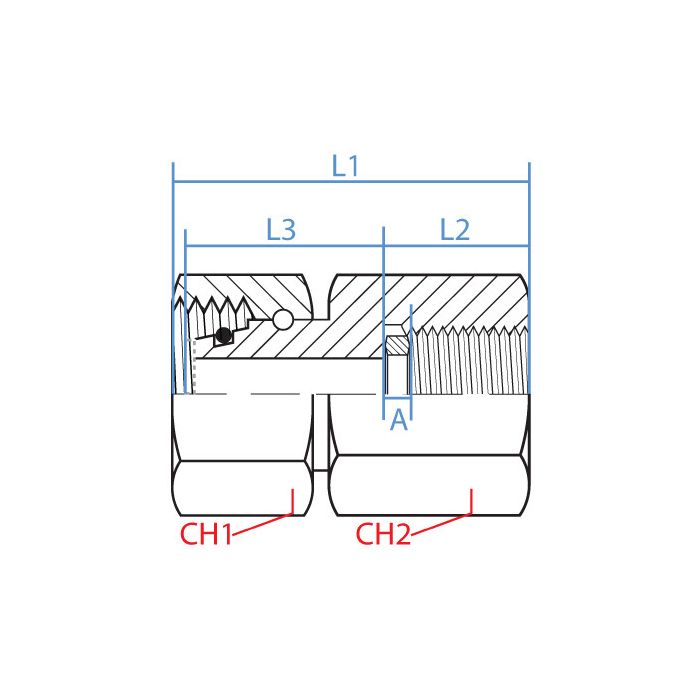

This coupling, made by Adaptall, is engineered for durability and ease of use. With dimensions including a 40.5mm length and widths of 17mm and 19mm at ch1 and ch2 respectively, it ensures a secure fit and optimal performance. The compact L2 length of 14mm and L3 length of 24.5mm further enhance its adaptability in tight spaces. Ideal for applications requiring robust and secure fluid connections, this product is a dependable choice for hydraulic systems.

SKU: 5309GCL-06-04

Supplier Part Number (MPN): 5309GCL-06-04

Specifications

Brand
adapt-all
a Dimensions
4.5 mm
Connection Size 1
6 mm
Connection Size 2
1/4 in
Connection Type
Female BSP, Female Metric
Connection Type 1
Female Metric DIN 24 deg Tube
Connection Type 2
Female BSPP
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-6, ISO 8434-1
Dimensions
38 mm L
Finish
Zinc-Plated
Fitting Type
Coupling
Material
Steel
Material Construction
Carbon Steel
Series
5309GC Series
Thread Size
M12x1.5 x 1/4-19

Product Questions & Answers (1)

Question by: Wes H on Nov 22, 2025, 2:09 PM
trying to hook a gauge up, will this couple my M12 x 1.5 DIN tube port over to a G 1/4 - 19 BSPP gauge?
Answer by: Customer Support on Nov 23, 2025, 5:47 PM
For connecting a gauge with a G 1/4 - 19 BSPP female thread to an M12 x 1.5 DIN tube connection, this coupling is set up exactly that way. Side 1 is female M12 x 1.5 DIN tube, and side 2 is female BSPP G 1/4 - 19 with a soft seal.
