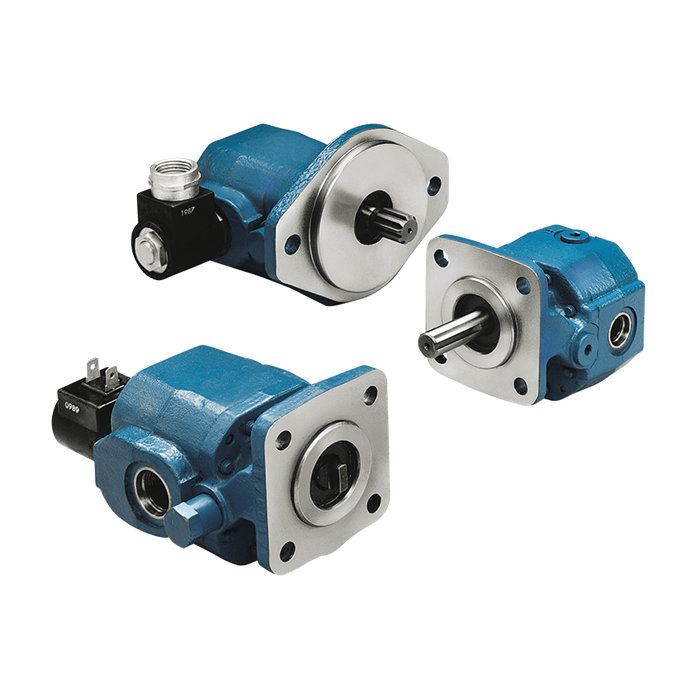

GC Series Gear Pump, 0.13 cu in/rev, 4-bolt 1.78 in. pilot Mounting Flange, 0.17 1in. Tang w/Short Coupling Shaft, SAE-6 Side Ports, Bi-Directional with check valves Rotation

The GC Series Gear Pump by Concentric Rockford Inc is engineered for optimal performance in industrial hydraulic applications. Featuring a displacement of 0.13 cu in/rev, this pump is built with a 4-bolt 1.78 in. pilot mounting flange and a 0.17 1in. tang with a short coupling shaft. It includes SAE-6 side ports and is designed for bi-directional rotation with integrated check valves.

Constructed with a cast iron body and hardened steel gears, it ensures reliable, long-life service even under rigorous conditions. The single lip Buna-N pressure seal enhances durability and performance. Rated for a maximum pressure of 3000 PSI and a speed range of 750 to 4000 RPM, this pump delivers superior volumetric efficiency and high mechanical efficiency due to its needle bearing construction.

The pump operates effectively within a maximum system temperature of 250deg;F, making it suitable for demanding industrial environments. The GC Series Gear Pump by Concentric Rockford Inc is a robust and versatile solution for fixed displacement applications.

MPN: C1LW72

Supplier Part Number: 1300086
