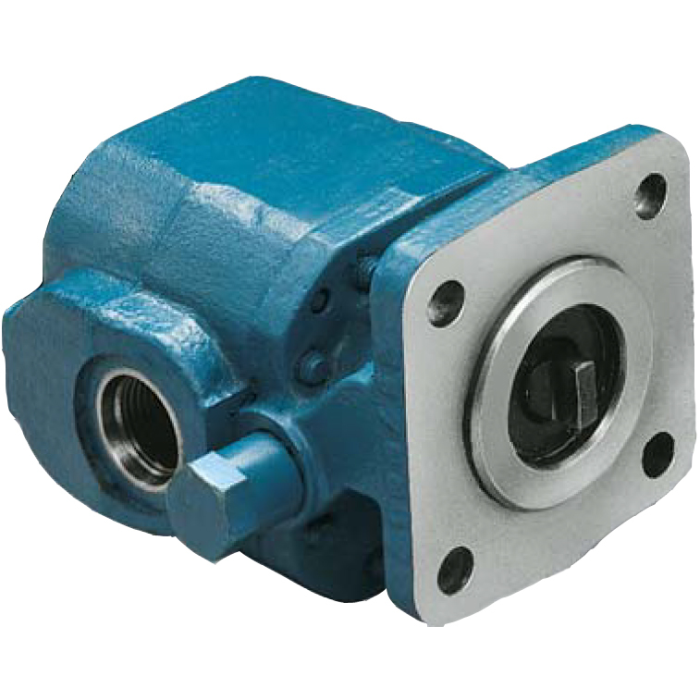

GC Series Gear Pump, 0.13 cu in/rev, 4-bolt 1.78 in. pilot Mounting Flange, 0.17 1in. Tang w/Short Coupling Shaft, SAE-6 Side Ports, Bi-Directional with check valves Rotation

Description & Features

The GC Series Gear Pump by Concentric Rockford Inc is engineered for optimal performance in industrial hydraulic applications. Featuring a displacement of 0.13 cu in/rev, this pump is built with a 4-bolt 1.78 in. pilot mounting flange and a 0.17 1in. tang with a short coupling shaft. It includes SAE-6 side ports and is designed for bi-directional rotation with integrated check valves.

Constructed with a cast iron body and hardened steel gears, it ensures reliable, long-life service even under rigorous conditions. The single lip Buna-N pressure seal enhances durability and performance. Rated for a maximum pressure of 3000 PSI and a speed range of 750 to 4000 RPM, this pump delivers superior volumetric efficiency and high mechanical efficiency due to its needle bearing construction.

The pump operates effectively within a maximum system temperature of 250deg;F, making it suitable for demanding industrial environments. The GC Series Gear Pump by Concentric Rockford Inc is a robust and versatile solution for fixed displacement applications.

MPN: C1LW72

Supplier Part Number: 1300086

Specifications

Displacement 0.13	Displacement 0.129	Brand Concentric Rockford Inc	Brand Concentric Rockford	Pack Size 1.00	UOM EA	Features Single Lip Buna-N Pressure Seal	Mount 4-bolt 1.78 in. pilot	Mount 4-bolt 1.78 in. pilot	Ports SAE-6 Side	Ports SAE-6 Side	Pressure Rating 3000	Rated Flow 1	Rated Flow 1	Rotation Bi-Directional with check valves	Shaft 0.17 1in. Tang w/Short Coupling	Shaft 0.17 1in. Tang w/Short Coupling	Speed Rating 4000 RPM	Speed Rating 4000 RPM	Supplier Part Number 1300086	Alternate Part Numbers Alternate Part Number C1LW72	Product Weight 4.66 lbs

Similar Products

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Features	Speed Rating	Pressure Rating
1300086 GC Series Gear Pump	0.129	1	4-bolt 1.78 in. pilot	0.17 1in. Tang w/Short Coupling	SAE-6 Side	Bi-Directional with check valves	Single Lip Buna-N Pressure Seal	4000 RPM	3000
1300094 GC Series Gear Pump	0.129	1	4-bolt 1.78 in. pilot	0.50 in. dia. X 1.50 in. extension	SAE-6 Side	Bi-Directional with check valves	Viton High-Pressure Seal w/Outboard Ball Bearing	4000 RPM	3000
1300096 GC Series Gear Pump	0.258	2	4-bolt 1.78 in. pilot	0.50 in. dia. X 1.50 in. extension	SAE-8 Side	Bi-Directional with check valves	Viton High-Pressure Seal w/Outboard Ball Bearing	4000 RPM	2300
1300098 GC Series Gear Pump	0.388	3	4-bolt 1.78 in. pilot	0.50 in. dia. X 1.50 in. extension	SAE-10 Side	Bi-Directional with check valves	Viton High-Pressure Seal w/Outboard Ball Bearing	4000 RPM	1600
