GC Series Gear Pump, 0.13 cu in/rev, 4-bolt 1.78 in. pilot Mounting Flange, 0.50 in. dia. X 1.50 in. extension Shaft, SAE-6 Side Ports, Bi-Directional with check valves Rotation

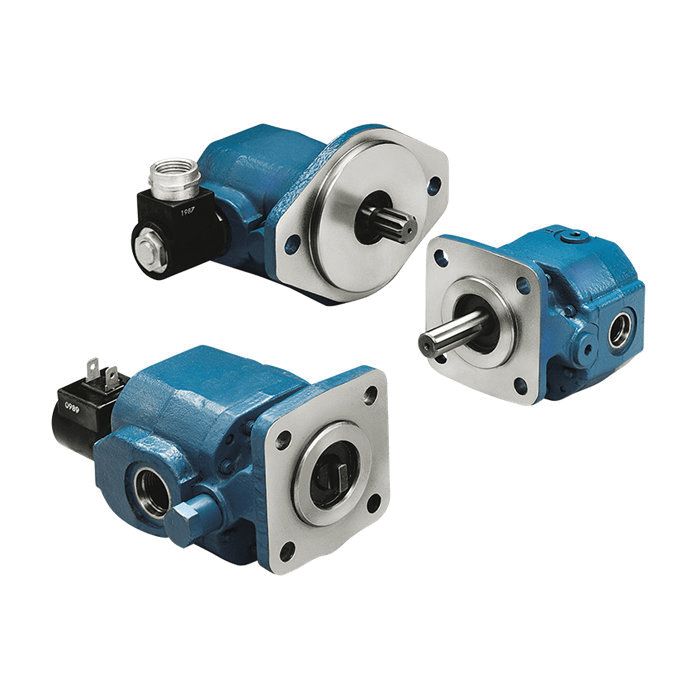

The Concentric Rockford Inc GC Series Gear Pump is engineered for high reliability in demanding environments. With a 0.13 cu in/rev displacement, this pump ensures efficient fluid handling. Featuring a 4-bolt 1.78 in. pilot mounting flange, this model allows secure installation and a compact fit.

Constructed with robust cast iron bodies and hardened steel gears, the GC Series Gear Pump offers enduring durability. Equipped with a 0.50 in. dia. x 1.50 in. extension shaft, this pump operates smoothly at a maximum speed of 4000 RPM. Its bi-directional rotation with check valves adds versatility to fluid control applications.

The SAE-6 side ports simplify the connection, maintaining optimal flow with a rated pressure of 3000 PSI. This gear pump incorporates a Viton high-pressure seal and an outboard ball bearing, enhancing its high-pressure capabilities, and superior volumetric efficiency. Additionally, needle bearing construction contributes to its high mechanical efficiency.

Designed for diverse applications, the Concentric Rockford Inc GC Series Gear Pump maintains performance up to a maximum system temperature of 250deg;F. The pump's wide variety of options supports various industrial requirements, making it a versatile choice for fixed displacement applications.

MPN: C1LW73

Supplier Part Number: 1300094
