DANFOSS / EATON 6 M JIC 14 M METRIC

Description & Features

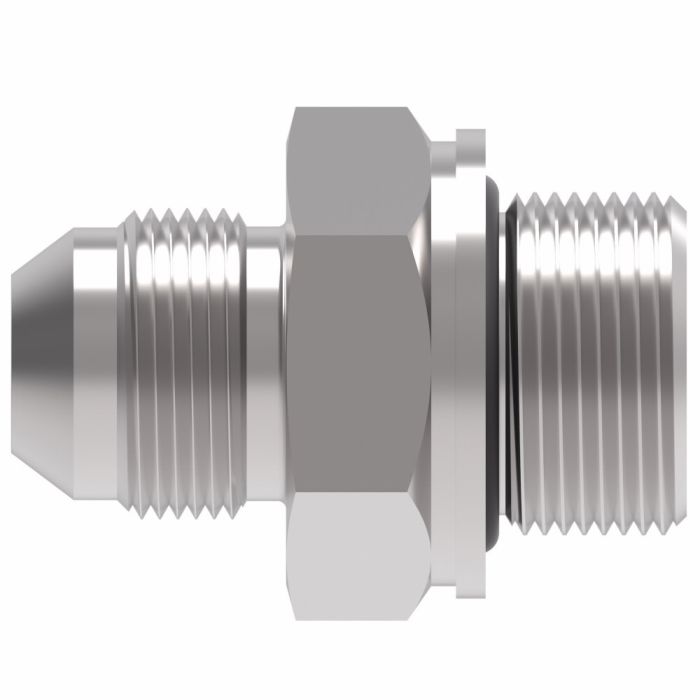

Designed for demanding industrial environments, the Danfoss / Eaton 6 M JIC 14 M Metric is a straight adapter connecting a 6 M JIC (SAE 37° male) end to a 14 M metric male end, finished in Dura-Kote plated carbon steel for strong resistance to corrosion. The adapter meets ISO 9974 certification standards and is rated for operating pressures above standard SAE requirements, making it well suited for high-demand hydraulic systems.

Suited for use across marine, military, chemical processing, pulp and paper, food and beverage, and offshore drilling applications, this adapter from the Aeroquip product line offers reliable performance in environments where corrosion resistance and connection integrity are critical. The Dura-Kote finish provides durable surface protection, while the broad range of available styles in this series supports configuration flexibility across varied system designs.

SKU: GG108-NP06-14

Supplier Part Number (MPN): GG108-NP06-14

Alternate Part Numbers: C1HE93

Specifications

Connection Size 1
14 mm
Connection Size 2
3/8 in
Connection Type
Male JIC, Male Metric
Connection Type 1
Male Metric DIN
Connection Type 2
Male SAE 37 deg JIC Flare
Dimension Standards
DIN 3852, SAE J514
Dimensions
1.34 in L
Finish
Dura-Kote™
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
GG108-NP Series
Thread Size
9/16-18 x M14x1.5
Tube OD
3/8 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Brenda G on Dec 31, 2025, 7:24 AM
Will this adapter hold up to some serious pressure, or is it just for lighter duty stuff?
Answer by: Customer Support on Jan 1, 2026, 7:34 PM
It's rated for operating pressures above standard SAE requirements, so it should be able to handle high-demand hydraulic systems without issue.
