main product photo

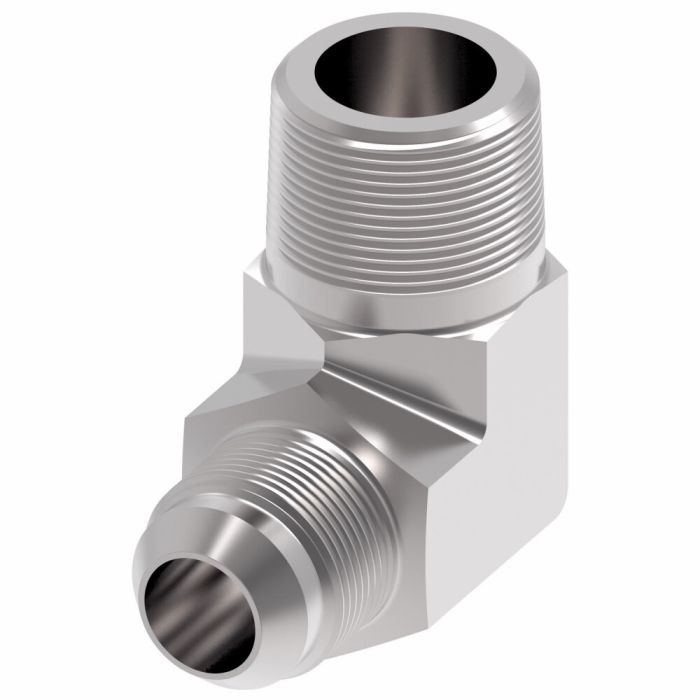

90 DegREE Elbow SAE 37 DegREE Male TO BS

Ask A Question

Description & Features

This 90 Degree Elbow SAE 37 Degree Male TO BS adapter is constructed of carbon steel and features Dura-Kote plating for superior corrosion resistance. Design flexibility is provided through a wide range of styles, along with higher operating pressures above SAE standards.

Applications include use in marine and military, chemical processing, pulp and paper industries, food and beverage processing, and off-shore drilling applications. The SAE 37° Male/BSPT Male 90° Elbow Adapter offers a minimum working temperature of -65 degrees. End 1 is a male SAE 37 connection and end 2 is a male BSPT connection, each with a size of 1.

SKU: GG310-NP16-16

Supplier Part Number (MPN): GG310-NP16-16

Specifications

Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male 37 deg
Connection Type 2
Male BSPT
Dimension Standards
SAE J514
Drop Dimensions
1.97 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Operating Temperature
-65 to 400 deg F
Series
GG310-NP Series
Thread Sealant
Without Thread Sealant
Thread Size
1-5/16-12

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Neil A on Feb 11, 2026, 2:37 PM
Will this fitting hold up if I'm running it pretty much non-stop?
Answer by: Customer Support on Feb 13, 2026, 6:23 AM
This elbow adapter is made from carbon steel and has a Dura-Kote plating, so it's built for demanding applications.
