AQP REFRIG HOSE

Ask A Question

Description & Features

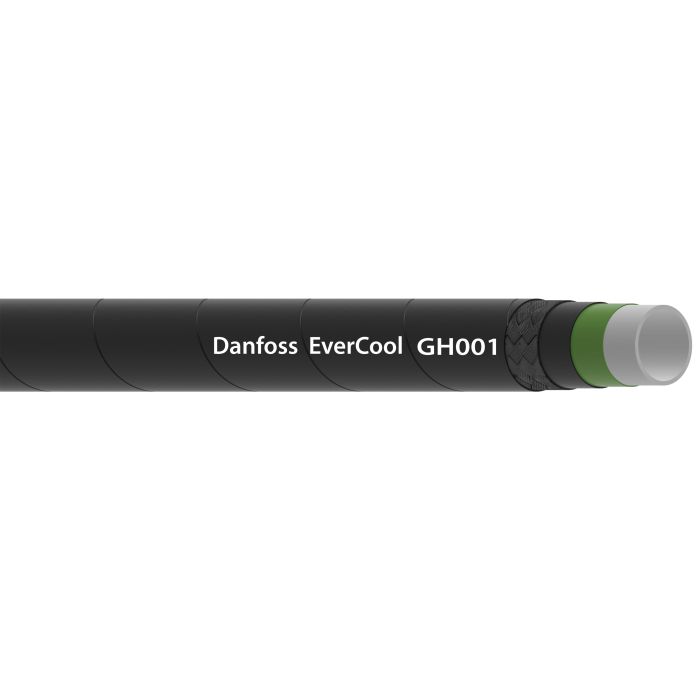

The Danfoss / Eaton EverCool GH001 A/C and Refrigeration Hose is designed to deliver performance and maximum uptime for air conditioning and refrigeration applications in construction agriculture and truck industries. Exceeding SAE J2064 standards this 1 ply braid hose features a conductive polyamide tube material and EPDM cover material.

Compatible with multiple refrigerants this hose ensures reliable operation and longevity with a standard abrasion resistance. It has a minimum bend radius of 4 and an impulse cycle life of 150 000 cycles. The hose's qualified fittings include EZ Clip or factory crimp making installation straightforward and efficient.

With certifications including SAE J2064 Type E Class 2 the black AQP REFRIG HOSE offers dependable performance in diverse operational environments. It measures 0.99 in width and is suitable for a range of industrial applications.

Supplier Part Number: GH001-12RL

Specifications

Abrasion Resistance
29
Alternate Part Numbers
Alternate Part Number GH001-12RL, Alternate Part Number MINO-00015X01528, Alternate Part Number MINO-00015X13541
Application
Air conditioning and refrigeration, Construction, Agriculture and Truck.
Certifications
SAE J2064 Type E, Class 2
Color
Black
Conductivity
30
Construction
1 Ply Braid
Cover Material
EPDM
Dash Size
-12
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Effusion Rate
R1234yf Effusion: <1kg/m2/yr at 80°C; R134a Effusion: <1.5kg/m2/yr at 80°C
Features
Deliver performance and maximum uptime|Hoses exceed SAE J2064|Compatible with multiple refrigerants
ICC
Hoses and Flexible Tubes
Impulse Cycle Life
150000 cycle
Language
English
Lay Line Style
Ink Jet
Minimum Bend Radius
4
Minimum Bend Radius
4
Minimum Working Temperature
-40
Product Width
0.99
Qualified Hose Fittings
EZ Clip or Factory crimp
Reinforcement Material
Fabric
Sub Brand
None
Supplier Part Number
GH001-12RL
Tube Material
Polyamide
Product Weight
0.61 lbs

Related Documents

Product Questions & Answers (3)

Question by: Rod J on Feb 22, 2026, 8:43 PM
Wondering if this hose will hold up in a refrigeration system on a semi truck?
Answer by: Customer Support on Feb 24, 2026, 6:33 PM
Designed for air conditioning and refrigeration applications in construction, agriculture, and trucking, this hose should be suitable for your semi-truck refrigeration system.
Question by: Rusty G on Mar 28, 2026, 2:34 PM
got a tighter spot to route it through, how sharp can this GH001-12 hose bend without kinking up
Answer by: Customer Support on Mar 30, 2026, 8:37 AM
For routing, the minimum bend radius on the GH001-12 is 4 inches. Staying at or above that bend radius helps keep the hose from being over-flexed in service.
Question by: Stan R on Feb 10, 2026, 7:58 AM
hose is rated for R1234yf and R134a both, or just one of them?
Answer by: Customer Support on Feb 11, 2026, 12:22 PM
Both refrigerants are covered. The GH001 carries effusion ratings for R1234yf at less than 1 kg per square meter per year and R134a at less than 1.5 kg per square meter per year, both tested at 80 degrees Celsius. So whether your system runs one or the other, you're in good shape with this hose.
