AEROQUIP BOIDIESEL HOSE

Description & Features

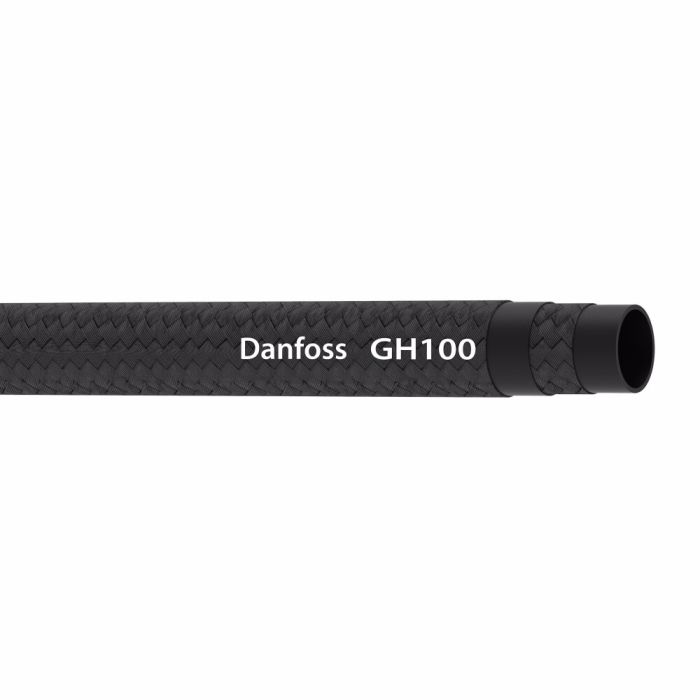

The Danfoss / Eaton GH100 Series Engine and Fuel Hose and Tubing is equipped with a highly abrasion-resistant polyester cover and is designed to handle various fuels including diesel biodiesel gasoline crude and lubricating oil. It offers superior performance in demanding environments with its proven reliability and high temperature resistance.

This product features a 1 ply braid construction ensuring durability and resilience. The black hose has a minimum bend radius of 3 inches and operates effectively within a wide temperature range from -40 degrees.

Compliance with ASTM D6751 EN412 EN2240 and ASTM D380 standards underlines its quality and suitability for industrial applications. The hydrogenated nitrile rubber (HNBR) tube material adds to its robust construction while the aramid reinforcement provides added strength.

The Aeroquip Biodiesel Hose is also known for its premium abrasion resistance and conductive properties making it a dependable choice various fuel systems. This product does not include any adjustable ends or requires mandrels.

Supplier Part Number: GH100-12.

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number MINO-00015F23217	Application Diesel fuel, biodiesel fuel, gasoline, crude and lubricating oil.	Color Black	Compliances ASTM D6751\|EN412\|EN2240\|ASTM D380	Conductivity 30	Construction 1 Ply Braid	Cover Material Polyester	Dash Size -12	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Highly abrasion resistant cover\|Small number of hoses for many fuel options\|Proven reliability with high temperature resistance	ICC Hoses and Flexible Tubes	Impulse Cycle Life 500000 cycle	Language English	Lay Line Style Ink Transfer	Minimum Bend Radius 3	Minimum Bend Radius 3	Minimum Working Temperature -40	Product Width 1.10	Qualified Hose Fittings OTC	Reinforcement Material Aramid	Sub Brand None	Supplier Part Number GH100-12	Tube Material Hydrogenated Nitrile rubber (HNBR)	Product Weight 0.61 lbs

Product Questions & Answers (2)

Question by: Donna H on Feb 26, 2026, 6:15 AM

got a skid steer that rubs hoses pretty good, is this GH100-12 tough enough on the outside?

Answer by: Customer Support on Feb 27, 2026, 8:34 AM

For abrasion-heavy spots, the GH100 series hose uses a highly abrasion-resistant polyester cover and it is rated as premium abrasion resistance, so it is built for situations where the hose gets scuffed up.

Question by: Danny C on Jun 28, 2025, 2:30 PM

Wondering if this biodiesel hose can handle regular diesel fuel okay, or is it just for biodiesel?

Answer by: Customer Support on Jun 29, 2025, 3:24 PM

Designed to handle a range of fuels, this hose works with diesel, biodiesel, gasoline, crude oil, and lubricating oil.
