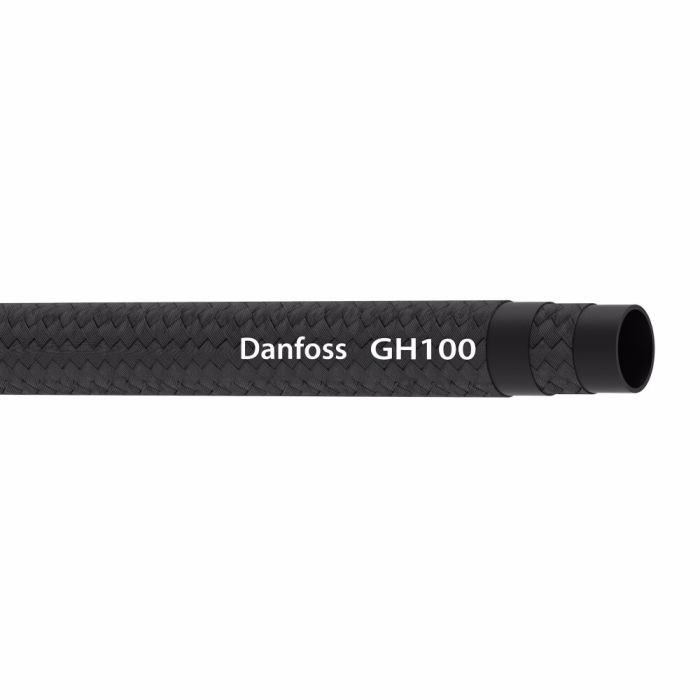

AEROQUIP BOIDIESEL HOSE

Description & Features

Designed for fuel system applications in diesel, biodiesel, gasoline, and lubricating oil service, the Aeroquip Biodiesel Hose, GH100 Series, delivers reliable performance across a broad range of fuel types with a single, versatile hose. The -4 dash size features a hydrogenated nitrile rubber (HNBR) tube, a single-ply aramid fiber braid reinforcement, and a polyester cover rated for premium abrasion resistance.

The conductive construction supports static-dissipating requirements common in fuel handling environments. A minimum bend radius of 1.25 inches and a rated impulse cycle life of 500,000 cycles reflect its durability in demanding engine and fuel line routing. The hose operates from -40°F to high-temperature thresholds and meets EN2240, ASTM D6751, ASTM D380, and EN412 compliance standards. Qualified fittings are OTC type. Lay line identification uses ink transfer print.

SKU: GH100-4

Supplier Part Number (MPN): GH100-4

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number MINO-00015X13555	Application Diesel fuel, biodiesel fuel, gasoline, crude and lubricating oil.	Color Black	Compliances EN2240\|ASTM D6751\|ASTM D380\|EN412	Conductivity 30	Construction 1 Ply Braid	Cover Material Polyester	Dash Size -4	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Highly abrasion resistant cover\|Small number of hoses for many fuel options\|Proven reliability with high temperature resistance	ICC Hoses and Flexible Tubes	Impulse Cycle Life 500000 cycle	Language English	Lay Line Style Ink Transfer	Minimum Bend Radius 1.25	Minimum Bend Radius 1.25	Minimum Working Temperature -40	Product Width 0.53	Qualified Hose Fittings OTC	Reinforcement Material Aramid	Sub Brand None	Supplier Part Number GH100-4	Tube Material Hydrogenated Nitrile rubber (HNBR)	Product Weight 0.29 lbs

Product Questions & Answers (1)

Question by: Jimmy J on Aug 25, 2025, 9:54 PM

Will this hose hold up to regular biodiesel, or am I gonna need something special?

Answer by: Customer Support on Aug 27, 2025, 8:23 AM

It's designed for biodiesel, diesel, gasoline, and lubricating oil, so it should handle regular biodiesel just fine.
