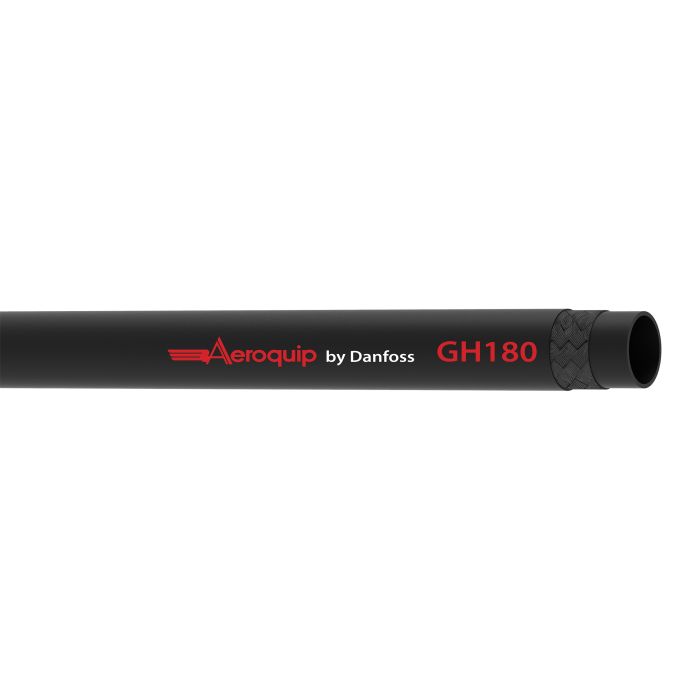

Hose SAE-R4 Nitrile Suction Hose

Ask A Question

Description & Features

This SAE 100R4 Nitrile Suction Hose is designed for use in the oil return lines of hydraulic systems within industrial and agricultural applications. The Aeroquip by Danfoss / Eaton GH180 Series Rubber Hydraulic Braided Hose features a synthetic rubber cover and tube material with a 2-ply braid construction.

Reinforced with a high-tensile synthetic textile and steel helix wire, this black hydraulic hose offers maximum durability under harsh operating conditions and robust construction to withstand high pressures. It has a minimum bend radius of 2.56 and a minimum working temperature of -40.

SKU: GH180-24

Supplier Part Number (MPN): GH180-24

Alternate Part Numbers: TK-GH180-24

Specifications

Abrasion Resistance
29
Alternate Part Numbers
Alternate Part Number MINO-00015X23921, Alternate Part Number TK-GH180-24
Application
in oil return line of hydraulic systems of industrial and agricultural applications
Certifications
SAE 100R4
Color
Black
Construction
2-ply braid
Cover Material
Synthetic Rubber
Dash Size
-24
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Features
Maximum durability under harsh operating conditions|Robust construction able to withstand highest pressures|System engineered to extend hose assembly life
ICC
Hoses and Flexible Tubes
Language
English
Minimum Bend Radius
2.56
Minimum Bend Radius
2.56
Minimum Working Temperature
-40
Product Width
2.25
Qualified Hose Fittings
TTC12
Reinforcement Material
High-tensile synthetic textile and steel helix wire
Supplier Part Number
GH180-24
Tube Material
Synthetic Rubber
Product Weight
1.01 lbs

Related Documents

Product Questions & Answers (1)

Question by: Bobby G on Oct 7, 2025, 9:09 AM
Will this hose hold up if its constantly circulating oil all day long in a machine shop environment?
Answer by: Customer Support on Oct 9, 2025, 6:30 AM
SAE 100R4 certification and its high-tensile synthetic textile and steel helix wire reinforcement mean it's built for maximum durability, even under harsh operating conditions like you find in a machine shop.
